Installing tie rod end

• Screw the tie rod end onto the tie rod up to the dimension (A), which was determined before removal.

  If necessary, hold the track rod with an open-end spanner for counter support.

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

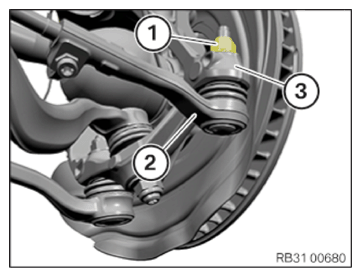

• Position the tie rod end (2) on the swivel bearing (3).
• Replace nut (1).

  Parts:  Nut

• Tighten nut (1). If necessary, counter support at the Torx socket.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
• Refer to PERFORM CHASSIS ALIGNMENT CHECK .
