Installing the anti-roll bar link

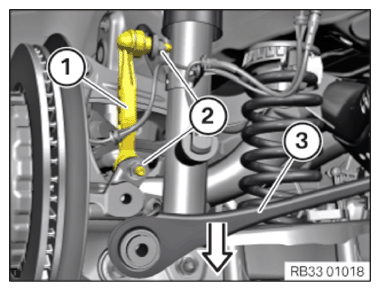

• Feed in and position anti-roll bar link (1).
• Slightly press the toe link (3) in arrow direction in a downwards direction.
• Replace nuts (2).

  Parts:  Nuts

• Tighten nuts (2). If necessary, counter support at the Torx socket.
  TIGHTENING TORQUE SPECIFICATION



  Rear anti-roll bar link to anti-roll bar/wheel carrier
  M10 Replace nut.	tightening torque	56 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the NORMAL POSITION .

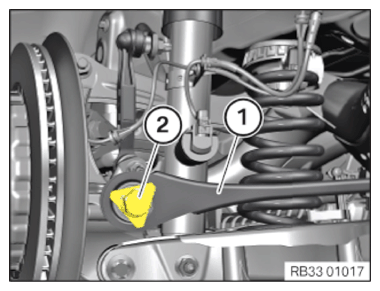

• Position control link (1) on the wheel carrier.
• Replace the screw (2).

  Parts:  Screw

• Tighten screw (2) by hand.

  The threaded connection is tightened later with the torque wrench in the NORMAL POSITION .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
• Refer to MEASURING THE RIDE HEIGHT OF THE REAR AXLE AND SETTING THE NORMAL POSITION .
• Refer to TIGHTENING THE SCREW CONNECTION OF THE CONTROL LINK ON THE WHEEL CARRIER .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
