Tightening the screw connection of the control link on the wheel carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the normal position.
Tighten the screw connection in the normal position.

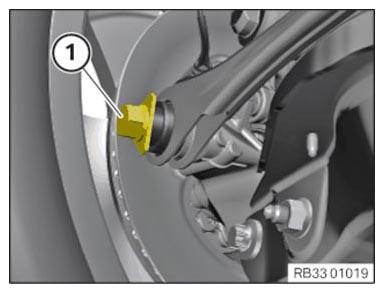

- Slacken screw (1) by one turn.
- Tighten the screw (1) with the standard tool.

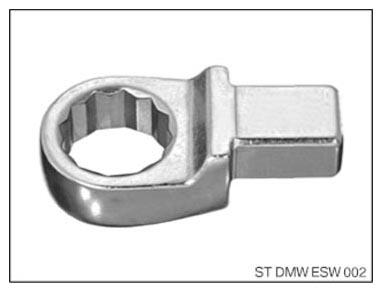

Standard tool: Ring insert tool for double hexagon head
Ring insertion tool for external double hexagon
Ring insertion tool for external double hexagon
TIGHTENING TORQUES SPECIFICATIONTrack arm to wheel carrier M12
Replace screw.
Tighten in normal position.Joining torque 100 Nm Angle of rotation 90°
