Install right output shaft

• Installing the output shaft

• Replace the collar screw (1) and compression spring (2).

  Parts:  Collar screw and compression spring

• Note installation position of compression spring (2).
• Keep the collar screw (1) and the front gearing of the wheel bearing and the prop shaft clean and free of grease.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in output shaft (1) and position on wheel bearing.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hand-tighten the collar screw (1) with the compression spring.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
• Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Press brake pedal.

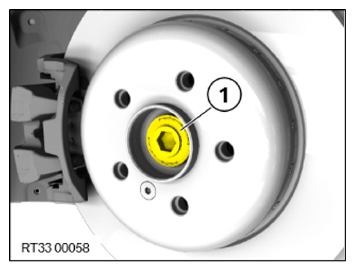

• Tighten the collar screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Output shaft to wheel bearing
  M16 Replace the collar screw.	Joining torque	210 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to GUIDING THE RIGHT OUTPUT SHAFT INTO THE REAR AXLE DIFFERENTIAL .
• Refer to LIFTING THE REAR AXLE DIFFERENTIAL .
• Refer to SECURING THE OUTPUT SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to FASTENING THE WIRING HARNESS TO THE M SPORT DIFFERENTIAL .
• Refer to CHECK/TOPPING UP OIL LEVEL IN THE REAR AXLE DIFFERENTIAL .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE REAR HEAT SHIELD .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING REINFORCEMENT STRUT .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to MOUNTING THE REAR RIGHT WHEEL .
