Install the cover of the camber control arm on the left and right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover of the camber control arm

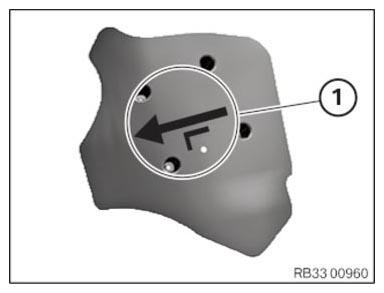

- The installation location and direction of installation (1) must be noted.
Direction of installation (1):
The arrow on the cover points in the driving direction.
Installation location:
- L = left
- R = right

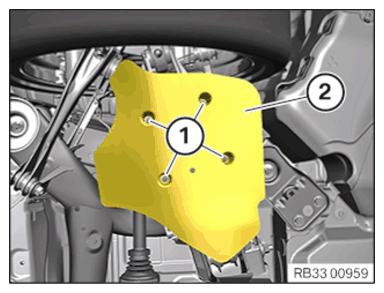

- Position cover (2) of the camber link on the camber link.
- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION
Cover to camber control arm M6 Replace nuts. tightening torque 6 Nm
