Installing rear axle differential

• Fold open the assembly protection ring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Raise the rear axle differential (1) somewhat with the special tool 0 496 009 (33 5 200)  .
• Insert the left-hand output shaft (3) into the rear axle differential (1).
• Turn the rear axle differential (1) with the special tool 0 496 009 (33 5 200)  to the right and insert the right output shaft (2) into the rear axle differential (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.
• Pull on the tab of the installation protection ring (1) until one of the two predetermined breaking points breaks.
• Pull out and dispose of the installation protection ring (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lift the rear axle differential (1) using special tools 0 496 009 (33 5 200) and  0 490 133 (00 2 030)  and  position on the rear axle support.
• Make sure that the special tool 0 496 080 (33 5 206)  is not pinched between the rear axle differential (1) and the dust plate of an output shaft.

  Courtesy of BMW OF NORTH AMERICA, INC.

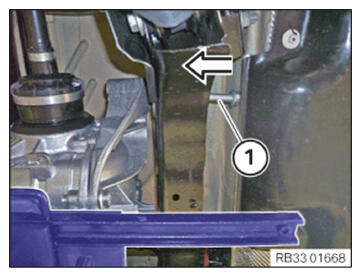

• Slide the screw (1) forward in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nut (1).

  Parts:  Nut

• Feed through the nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1).

  Parts:  Screws

• Pilot the screws (1) by hand and tighten.
  TIGHTENING TORQUE SPECIFICATION



  Rear differential to rear axle carrier, front
  M12 Replace screw.	tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1). In doing so, counter support at the nut.
  TIGHTENING TORQUE SPECIFICATION



  Rear differential to rear axle carrier, rear
  M14 Replace nut	Tightening torque.	175 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the special tool 0 496 080 (33 5 206)  from the rear axle differential (1) and remove it.
• Lower the special tools  0 490 133 (00 2 030)  and 0 496 009 (33 5 200) and set them aside  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
• Position the vibration absorber (1).

  The arrow on the vibration absorber (1) points vertically upwards.

  TECHNICAL DATA SPECIFICATION



  Installation position
  Permissible rotation	-5°...+5°

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
• Replace the screw (2).

  Parts:  Screw

• Tighten the screw (2) on the vibration absorber (1) with the standard tool.

  Standard tool: Ring insert tool for external Torx socket

  Ring insertion tool for external Torx socket

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Ring insertion tool for external Torx socket

  TIGHTENING TORQUE SPECIFICATION



  Vibration absorber at rear axle
  M10 Replace screw.	tightening torque	56 Nm
  	Angle of rotation	90°

Follow-up work

• Refer to FASTENING THE LEFT AND RIGHT DRIVEN SHAFT TO THE REAR AXLE DIFFERENTIAL .
• Refer to CHECK/TOPPING UP OIL LEVEL IN THE REAR AXLE DIFFERENTIAL .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE REAR HEAT SHIELD .
• Refer to FASTENING THE WIRING HARNESS TO THE M SPORT DIFFERENTIAL .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING REINFORCEMENT STRUT .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
