Installing the wishbone

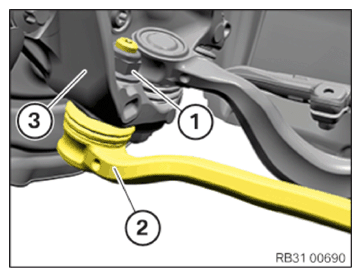

- Position the wishbone (2) on the swivel bearing (3) .
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) . If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATION
| Wishbone to swivel bearing | ||
| M14 Replace nut. |
tightening torque | 175 Nm |
NOTE:
TECHNICAL INFORMATION
The screw connection is tightened later in the NORMAL POSITION with the torque wrench.
The screw connection is tightened later in the NORMAL POSITION with the torque wrench.

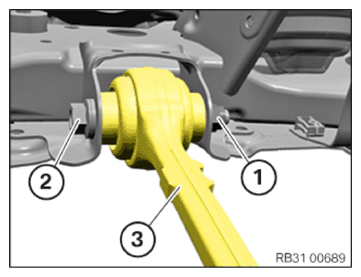

- Position the wishbone (3) on the front subframe.
- Replace the screw (2)
and the nut (1)
.
Parts: Screw, nut
- Insert screw (2) and guide on the nut (1) .
- Tighten screw (2) by hand. In doing so, counter support at the nut (1) .
Follow-up work
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to FASTENING THE RIDE HEIGHT SENSOR ON THE BOTTOM WISHBONE .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE WISHBONE ON THE FRONT SUBFRAME .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to PERFORM CHASSIS ALIGNMENT CHECK .
