Install rear upper seat belt
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
Clean all belt fittings with microencapsulated male and female threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.
Clean all belt fittings with microencapsulated male and female threads.
Shavings or other debris must not remain in the components.
If a microencapsulated screw is reused, it must be coated with the following screw locking agent: Loctite 243, medium strength.
The screw connection must be completed within 10 minutes as hardening begins after this period.

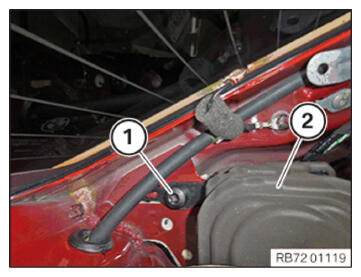

- Position the rear upper seat belt (2) correctly on the retainer of the body.
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Seat belt retractor to body M10 screw Replace screw Tightening torque 42 Nm - Replace screws (2).
Parts: Screw
- Tighten the screws (2).TIGHTENING TORQUES SPECIFICATION
Additional mount for rear seat belt retractor to body M6 screw Replace screw Tightening torque 4.5 Nm - Connect connectors (1) and lock.
- Guide the seat belt end fitting (2) correctly through all removed covers.
NB: Make sure that the seat belt is not twisted.
- Position the seat belt end fitting (2) correctly on the body.
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
End lining to body M10 Replace screw. Tightening torque 42 Nm
Follow-up work
- Refer to INSTALLING THE TRIM PANEL FOR THE REAR SHELF .
- Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
- Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to INSTALLING THE REAR SEAT .
