Installing the airbag control unit
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

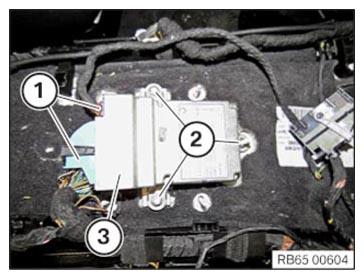

- Position airbag control unit (3) correctly.
- Tighten nuts (2)
.TIGHTENING TORQUES SPECIFICATION
Airbag control unit to body screw Tightening torque 8 Nm - Connect connectors (1) and lock.

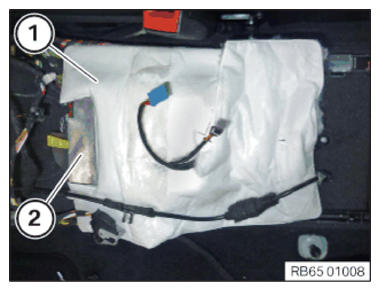

- Correctly position the insulation (1)
and fasten the airbag control unit (2)
.
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ADJUSTING THE SENSORS FOR THE DRIVING DYNAMICS .
