Installing the engine wiring harness for the sensor system 2
Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.

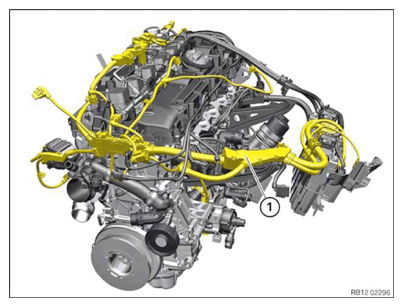

- Feed in the engine wiring harness (1) for the sensor system 2 and install it.
- Feed in the engine wiring harness (6) for the sensor system 2 and install it.
The locks (arrows) must engage audibly.
- Feed in differential pressure sensor (5) and position.
- Tighten down screw (4).TIGHTENING TORQUES SPECIFICATION
Differential pressure sensor to holder TS6X18 Tightening torque 3.5 Nm - Connect connectors (3) and lock.
The connector (3) must engage audibly.
- Connect the connector (2) with engine wiring harness (6) for the sensor system 2 and lock it.
The connectors (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Version A:
Feed in the engine wiring harness (2) for sensor system 2 and install it.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).
- Version B:
Feed in the engine wiring harness (2) for sensor system 2 and install it.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).

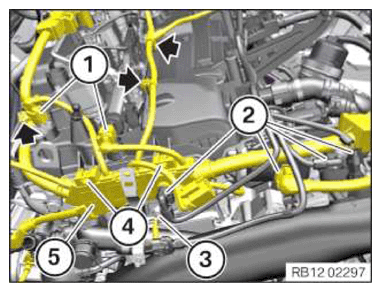

- Feed in the engine wiring harness (5) for sensor system 2 and install it.
- Ensure that locks (4) engage audibly.
- Tighten nut (3).TIGHTENING TORQUES SPECIFICATION
Front ground cable to cylinder head M6 tightening torque 8 Nm - Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and position auxiliary coolant pump (4).
- Feed in and position retaining bracket (3).
- Tighten nut (2).TIGHTENING TORQUES SPECIFICATION
Electric coolant pump to holder M6 tightening torque 8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Feed in the engine wiring harness (1) for the sensor system 2 and install it.
- Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Feed in and install the (3) electric coolant pump.
- Position the retainer (2).
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Electric coolant pump to holder M6 tightening torque 8 Nm - Fasten the cable clip (arrow).
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ENGINE VENTILATION LINE .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
