Installing the engine wiring harness for the sensor system 1

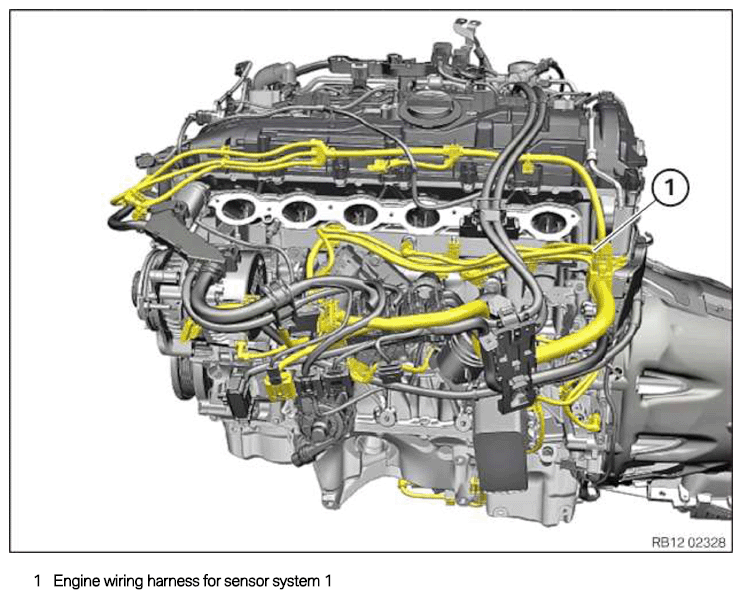

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.

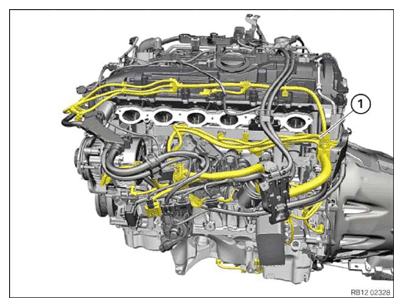

- Guide in and install the engine wiring harness (1) for sensor system 1.
- Guide in and install the engine wiring harness (1) for sensor system 1.

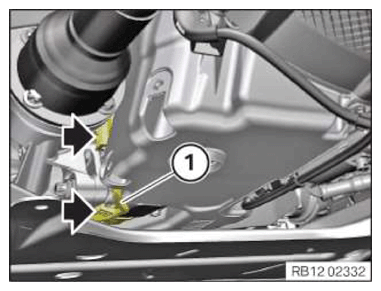

- Secure the clamps (arrows).

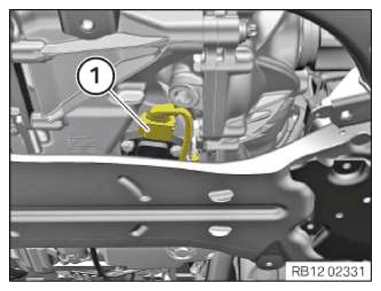

- Connect connectors (1) and lock.
The connector (1) must engage audibly.

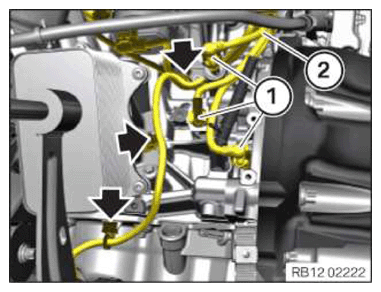

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Guide in and install the engine wiring harness (2) for sensor system 1.

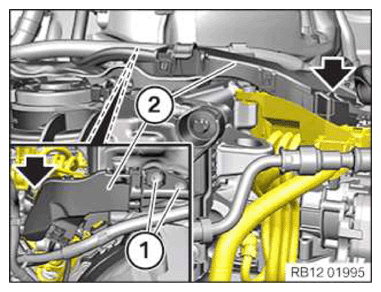

- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Guide in the wiring harness section (2) and install.
- Make sure the detent (arrow) engages audibly.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION

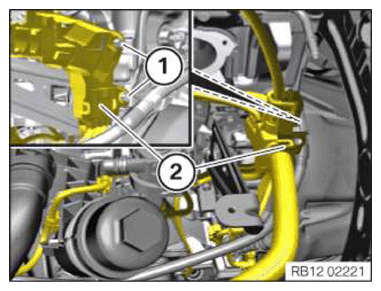

Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Connect connectors (1) and (2) and lock.
The connectors (1) and (2) must audibly engage.

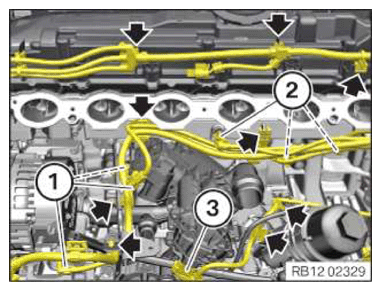

- Connect connectors (3) and lock.
The connector (3) must engage audibly.

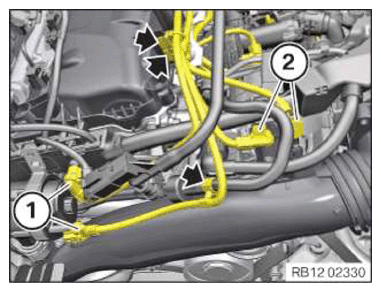

- Connect connectors (2) and lock.
The connectors (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING CENTER FIREWALL LOWERING PART .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
