Removing air conditioning condenser evaporator pressure line
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
CAUTION:
Refrigerant circuit under high pressure.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: INSTRUCTIONS FOR HANDLING R1234YF REFRIGERANT , or SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A , and NOTES FOR REPAIR WORK ON AIR CONDITIONING
NOTE:
TECHNICAL INFORMATION
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING CONTROL UNIT BRACKET .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
- Refer to REMOVING COOLANT EXPANSION TANK OF HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING SAFETY PRESSURE SWITCH .
- Refer to REMOVING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE CENTER FIREWALL LOWERING PART .
Disconnect the refrigerant line from the expansion valve
CAUTION:
Residual pressure in the heating and air conditioning system.
Injury hazard!
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.

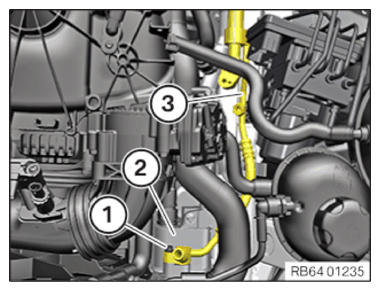

- Open the holder (1) .
- Loosen nut (1) .
- Remove the refrigerant line (2)
and set it aside.

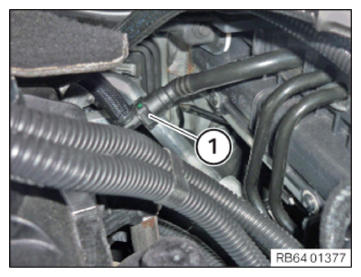

- Unlock and disconnect the vacuum line (1)
.

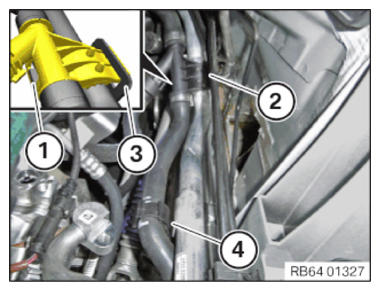

- Unlock the lock (1) below at the pipe neck (2) .
- Detach the pipe neck (2) from the guide (3) .
- Put the positive pipe neck (2) to one side.
- Unclip hose support (4) .
- Loosen screw (1) .
- Remove the pressure line (3) from the air conditioning condenser (2) .
- Fully feed out and remove the pressure line (3) .
