Remove safety pressure switch
CAUTION:
Refrigerant circuit under high pressure.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: INSTRUCTIONS FOR HANDLING R1234YF REFRIGERANT , or SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A , and NOTES FOR REPAIR WORK ON AIR CONDITIONING
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
CAUTION:
Residual pressure in the heating and air conditioning system.
Injury hazard!
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.

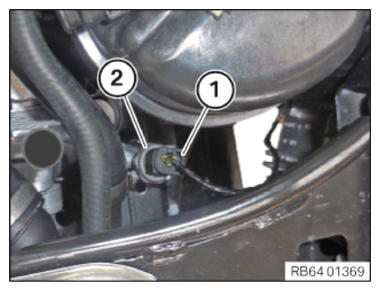

- Unlock and disconnect connector (1).
- Loosen the safety pressure switch (2).
