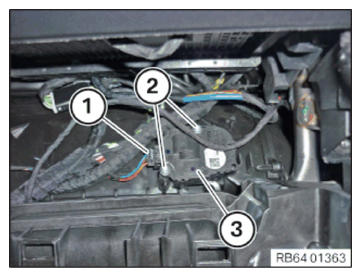

Installing the rear compartment flap motor (M8)

• Install rear compartment flap motor (3)  and position correctly.
• Tighten down screws (2)  .
• Connect connectors (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
• Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER CONSOLE TRIM .
• Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ADDRESSING THE CONTROLLER DRIVE .
