Installing rear brake pads

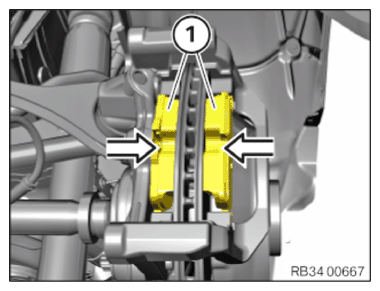

• Install the brake pad (1) in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the special tool (cable tie) 2 413 317 .

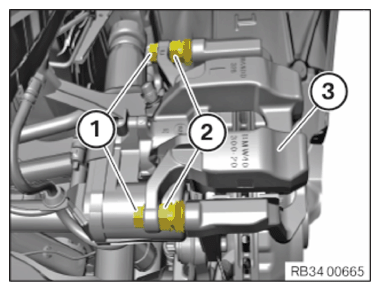

• Mount brake caliper (3).
• Replace screws (1).

  Parts  : Screws

• Tighten the screws (1), if applicable, hold against the hexagon head (2).
  TIGHTENING TORQUE SPECIFICATION



  Guide bolt (brake caliper on brake anchor plate)
  M8	Tightening torque	35 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR BRAKE PAD WEAR SENSOR .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to START-UP OR BEDDING IN BREAK-IN OF NEW BRAKE PADS AND ROTORS (REAR BRAKE) .
• Refer to PERFORM THE CBS RESET .
