Installing the front passenger airbag
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

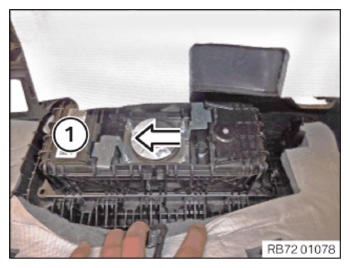

- Correctly position the front passenger airbag (1) and lock in arrow direction.

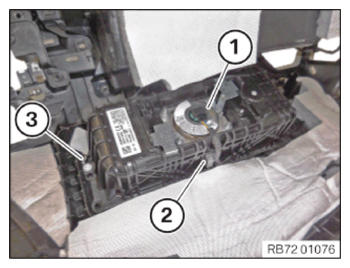

- Tighten down screw (3) .
TIGHTENING TORQUES SPECIFICATION
| Front passenger airbag on dashboard trim | ||
| Oval-head screw | Tightening torque | 2 Nm |
- Clip in the cable bracket (2) .
- Connect plug connection (1) and lock.
Follow-up work
- Refer to INSTALLING THE AIR DUCTS IN THE DASHBOARD .
- Refer to INSTALLING THE TRIM PANEL FOR THE DASHBOARD .
- Refer to INSTALLING THE SPEAKER HOLDER ON THE DASHBOARD .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING AUDIO CONTROL UNIT .
- Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
- Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CUP HOLDER .
