Installing the steering column switch cluster (SZL)

• For replacement:

  Break off the transportation retainer (1) on the steering column switch cluster (SZL) (2) in arrow direction.

  The broken off piece (3) of the transportation retainer (1) remains in the steering column switch cluster (SZL) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) with the steering column switch cluster (SZL) (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

• Version A:

Check if the correct mark (1) is visible in the inspection glass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» No or an incorrect mark (1) is visible in the inspection glass (2).

Measure

• Turn the coil spring cassette until the correct mark (1) is visible in the inspection glass (2).

Check

• Version A:

Check that the correct marking (1) is visible in the inspection glass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The correct mark (1) is visible in the inspection glass (2).

Measure

• Continue with the next step.

Check

• Version B:

Check if the correct mark (1) is visible in the inspection glass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» No or an incorrect mark (1) is visible in the inspection glass (2).

Measure

• Turn the coil spring cassette until the correct mark (1) is visible in the inspection glass (2).

Check

• Version B:

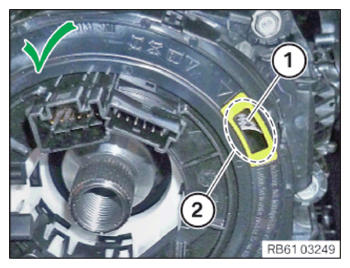

  Check if the correct mark (1) can be seen in the viewing window (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The correct mark (1) is visible in the inspection glass (2).

  Measure

  • Continue with the next step.
• Position the steering column switch cluster (SZL) (2).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to GREASING THE SZL .
• Refer to INSTALLING THE STEERING WHEEL/M SPORT STEERING WHEEL .
• Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
• Refer to CONNECTING ALL BATTERY GROUND LEADS  .
