Install steering column shroud lower section

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

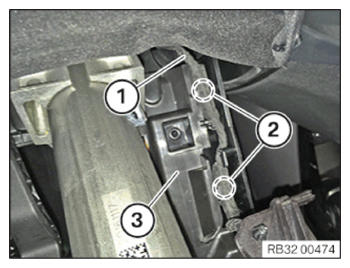

Position steering column shroud lower section (3).
Secure the line (1) on the holders (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Align the steering column shroud lower section (2) to the steering column using the retaining lug (1).
Push the steering column shroud lower section (2) up in the direction of the arrow until the holders (3) engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
