Installing the operating facility in the center console
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

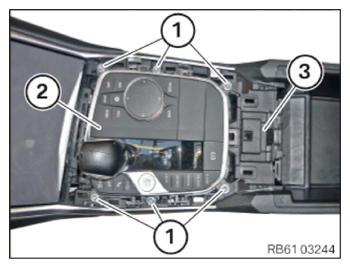

- Position the operating facility in the (2) center console (3) and connect and lock the associated connector.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| GWS to center console trim | ||
| screw | Tightening torque | 1.8 Nm |
Disconnecting all battery ground leads
- See additional information.
Activating the 48 V electrical system
Precondition
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the 48-V battery
If a 48-V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.
Damage to the 48-V battery
If a 48-V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.

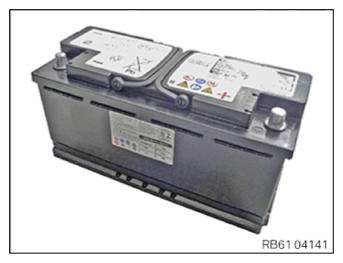

- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.

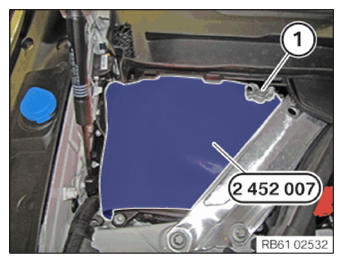

- Raise the battery ground cable (1).
- Remove special tool 2 452 007
.
- Release the negative battery cable (2) of the 48-V battery from the attachment.

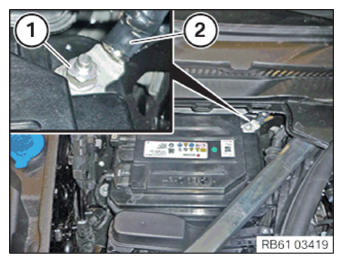

- Position the negative battery cable (2) of the 48-V battery on the negative battery terminal.
- Tighten the nut (1).TIGHTENING TORQUES SPECIFICATION

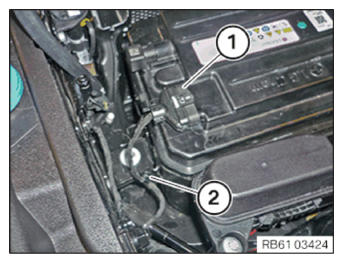

Negative battery cable to 48-V battery Nut M8 tightening torque 19 Nm - Connect the connector (1) of the CAN bus and lock it.
- Clip in the clip (2).

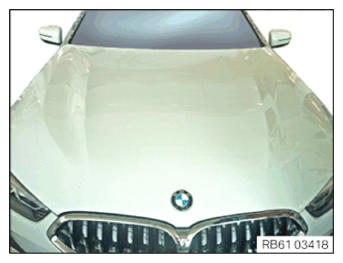

- Activate the 48 V electrical system by closing the hood.
The activation takes place automatically.
Follow-up work
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
