Installing the coil spring cassette
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

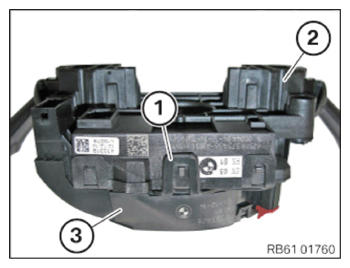

- Clip the coil spring cassette (3) onto the steering column switch cluster (SZL) (2) .
- Check the central detent (1)
on the steering column switch cluster (SZL) (2)
.

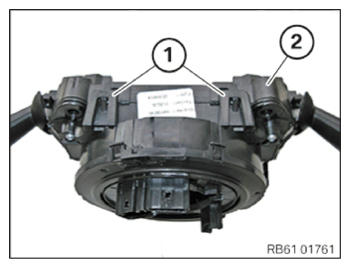

- Check both detents (1) on the steering column switch cluster (SZL) (2) .
Follow-up work
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to GREASING THE SZL .
- Refer to INSTALLING THE STEERING WHEEL/M SPORT STEERING WHEEL .
- Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
