Installing the radial shaft seal for the gearshift shaft
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Coat sealing lips of radial shaft seal and gearshift shaft with transmission oil.
- Drive in radial shaft seal with special tool 0 493 423 (23 0 220) .
- Replace spring circlip (4).
Parts: Spring circlip
- Lock spring circlip (4) in place in installation position (2).
- Install gearshift rod joint (3) in the arrow direction.
- Press cylindrical pin (1) into gearshift rod joint (3).
- Secure cylindrical pin (1) using the spring circlip (4).
NOTE:
TECHNICAL INFORMATION
For additional information see: 1.0 Greasing and mounting shifting components
For additional information see: 1.0 Greasing and mounting shifting components

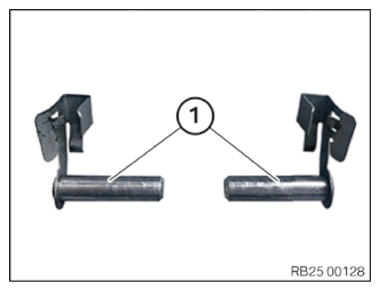

- Grease bearing journal (1).
- Install the bearing journal (1) in arrow direction.
- Lock the fuses (2) in arrow direction.
NOTE:
TECHNICAL INFORMATION
For additional information see: 1.0 Greasing and mounting shifting components
For additional information see: 1.0 Greasing and mounting shifting components
- Grease the gearshift rod pin (1) of gearshift rod (2).
- Hook the gearshift rod (1) into the gearshift rod joint (3) in the arrow direction.
- Insert retaining clip (2).
The retaining clip must snap-in audibly.
Follow-up work
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING FRONT HEAT SHIELD .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE LEFT THRUST FIELD .
- Refer to INSTALLING TANK COVER .
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
