Install wheel carrier
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

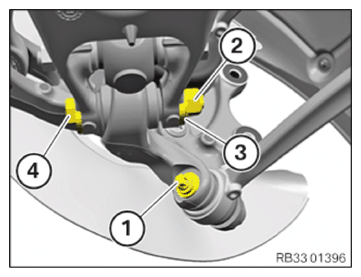

- Feed in and position the wheel carrier (3) at the wishbones.
- Replace the nuts (1) and (2).
Parts: Nut
- Hand-tighten the nuts (1) and (2). If necessary, counter support at the Torx socket.
- Tighten nuts (1) and (2). If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Upper wishbone at front/rear to wheel carrier | ||
| M14 Replace nut. | Tightening torque | 165 Nm |
- Replace the screw (2).
Parts: Screw
- Insert the screw (2) and position the anti-roll bar link (1) on the wheel carrier.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Rear anti-roll bar link to wheel carrier | ||
| M10 Replace screw. | Tightening torque | 56 Nm |
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .
- Replace the nut (2), eccentric washer (3) and the eccentric screw (4).
Parts: Nut, eccentric washer, eccentric screw
- Insert the eccentric screw (4).
- Position eccentric washer (3).
- Tighten the nut (2) hand-tight. Turn the eccentric to the mark.
- Replace the screw (1).
Parts: Screw
- Tighten screw (1) by hand.
The screw connections are tightened with the torque wrench only after wheel alignment and in NORMAL POSITION respectively.
NOTE:
In order to tighten the screw connection with the torque wrench after adjustment work, the direction of insertion of the eccentric screw must be reversed.
- Replace the eccentric screw (1), the eccentric washer (2) and the nut (3).
Parts: Eccentric screw, eccentric washer, nut
- The eccentric screw (1) must be inserted from the top.
- Position eccentric washer (2).
- Hand-tighten the nut (3). Turn the eccentric to the mark.
The threaded connection is tightened with the torque wrench only after the wheel alignment.
- Release the special tool 2 413 317 from the output shaft (1) and remove it.
Follow-up work
- Refer to MOUNTING THE WHEEL SPEED SENSOR TO THE WHEEL CARRIER .
- Refer to INSTALLING THE REAR BRAKE DISC .
- Refer to INSTALLING REAR BRAKE PADS .
- Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
- Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
- Refer to PLACING THE BRAKE PADS ON THE BRAKE DISK/PUTTING THEM INTO OPERATION .
- Refer to MEASURING THE RIDE HEIGHT OF REAR AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE LOWER FRONT CONTROL ARM TO THE WHEEL CARRIER .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
- Refer to TIGHTENING THE SCREW CONNECTIONS TO THE WHEEL CARRIER .
