Installing the rear brake disc
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
- Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!
- Position the brake disc (2) .
- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Brake disc to rear wheel hub M8

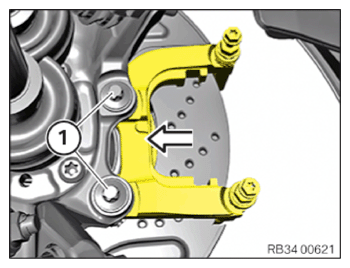

Replace screw.Tightening torque 16 Nm - Position the brake anchor plate in the arrow direction.
- Replace screws (1) .
- Parts: Screws
Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Brake anchor plate to rear wheel carrier | ||
| M12 Replace screw. |
Tightening torque | 130 Nm |
