Installing rear brake pads

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

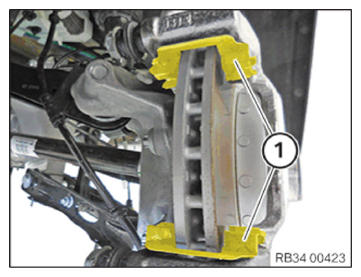

Check the position of the sliding plate (1) and correct if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

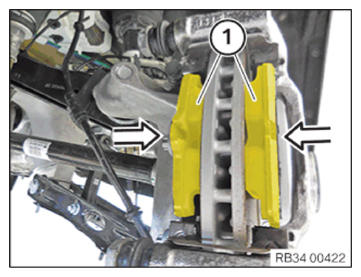

Install the brake pad (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Variant with design clip:
Replace the design clip (1) .
Parts: Design clip

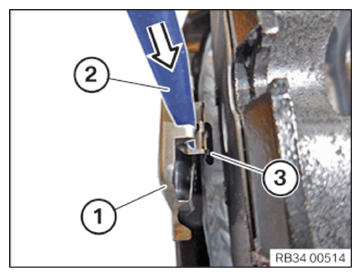

Attach the design clip (1) and engage it in arrow direction with a screwdriver (2) .
Ensure that the retaining tab (3) is engaged correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

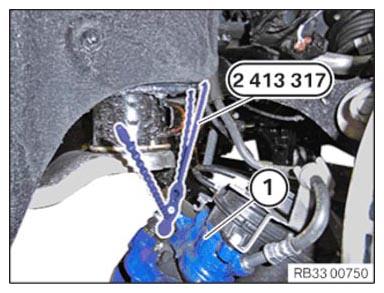

Release the special tool 2 413 317 .
Do not hang the brake caliper (1) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the right side.

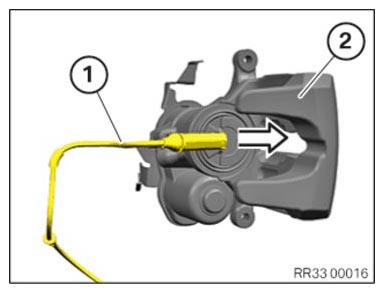

Thread the cable (1) for the brake pad wear sensor in arrow direction through the brake caliper (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

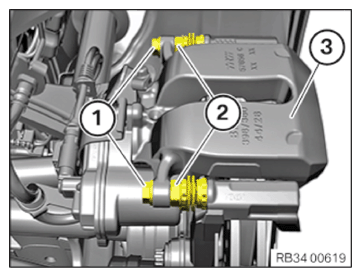

Position the brake caliper (3) .
Replace screws (1) .
Parts: Screws

Tighten the screws (1) . Counter support at the hexagon head (2) while doing so.

TIGHTENING TORQUE SPECIFICATIONS

Guide bolt (brake caliper on brake anchor plate)
M8	Tightening torque	35 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the right side.

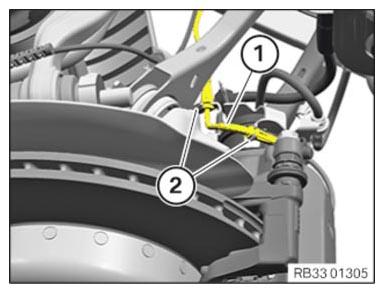

Fasten the cable (1) for the brake pad wear sensor to the holders (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only perform the operation on the right side.

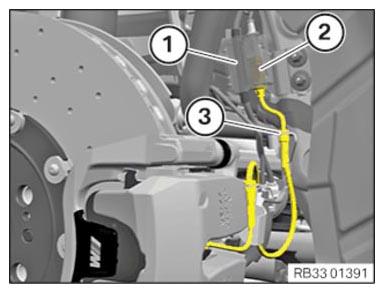

Attach the cable on the holder (3) .
Connect the connector (2) to the brake pad wear sensor and lock it.
Close and lock the lid (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
