Remove oil sump
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Heavy component falling down or tipping
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Secure the engine in the installation position.
- For additional information see: 11 00 670 MOVING THE ENGINE TO THE INSTALLATION POSITION (M4 RWD MODELS, 2021-2023) or 11 00 670 MOVING THE ENGINE TO THE INSTALLATION POSITION (M4 AWD MODELS, 2021-2023) .
WARNING:
Car may slip off the vehicle hoist where components are supported
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE FRONT-END STRUT .
- Refer to REMOVING THE LEFT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to REMOVING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to REMOVING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING UPPER CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE OIL FILLER CAP .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE FRONT SPOILER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING THE FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE RIGHT HAND FRONT BOTTOM SIDE COVER .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- Refer to REMOVING THE LEFT FRONT AND RIGHT FRONT BRAKE VENTILATION DUCT .
- Refer to DETACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT SUBFRAME .
- Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
- Refer to RELEASING THE WISHBONE, TENSION STRUT AND TIE ROD END ON THE LEFT AND RIGHT FROM THE SWIVEL BEARING .
- Refer to RELEASING UNIVERSAL JOINT ON STEERING GEAR .
- Refer to RELEASING THE COOLANT LINES FROM THE FRONT SUBFRAME .
- Refer to RELEASING THE OIL DRAIN PLUG .
- Refer to TIGHTENING THE OIL DRAIN PLUG .
- Refer to DRAINING THE COOLANT FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to REMOVING THE FAN COWL .
- Refer to REMOVING THE CHARGE AIR DUCT FOR CYLINDERS 1-3 .
- Refer to REMOVING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
- Refer to REMOVING THE CHARGE AIR CROSSING .
- Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
- Refer to REMOVING THE IDLER PULLEY .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SIDE HOOD SEAL .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT TOP RIGHT REAR .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT AT THE TOP REAR .
- Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
- Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
- Refer to REMOVING THE FILLER CHANNEL OF THE WASHER SYSTEM .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to PLACING THE COMBUSTION ENGINE IN THE INSTALLATION POSITION .
- Refer to REMOVING INTERMEDIATE PIPE .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to REMOVING FRONT AXLE COMPLETELY .
- Refer to REMOVING STARTER MOTOR .
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

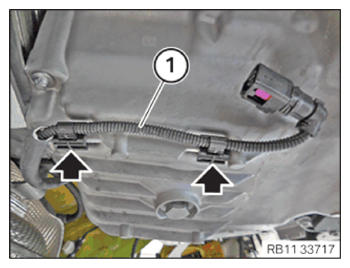

- Unlock plug connection (1) and disconnect.
- Unlock and detach the clamps (arrows).
- Feed out the wiring harness section (2) for the sensor system
1 and set aside.

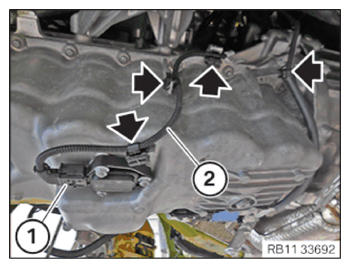

- Unlock and detach the clamps (arrows).
- Feed out the wiring harness section (1) for the sensor system 1
and set aside.

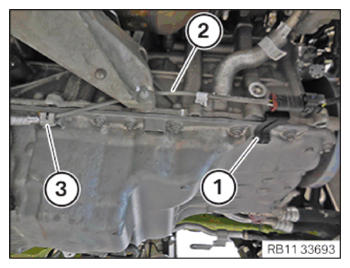

- Loosen clamp (1).
- Guide out the cable (2) from the clamp (3) and set aside.

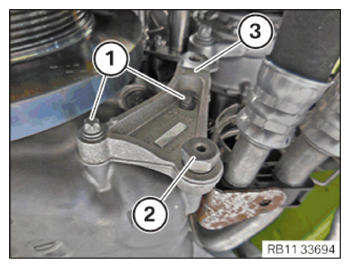

- Loosen screws (1).
- Release the spacer (2).
- Guide out and remove holder (3).

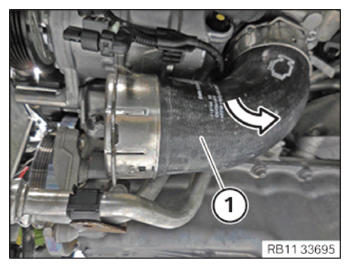

- Set the charge air duct (1) in arrow direction
to the side.

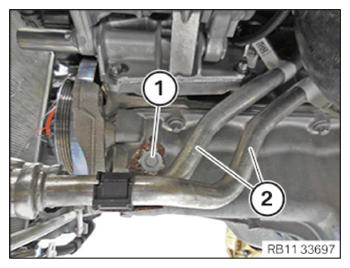

- Loosen screw (1).
- Pull the engine oil lines (2) out and set them aside.
- Version with manual transmission:

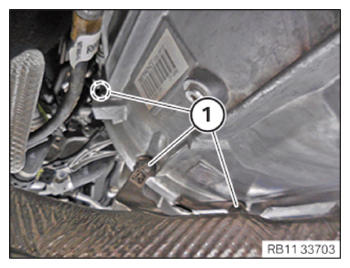

Unscrew the transmission bolts (1).
- Version with automatic transmission:

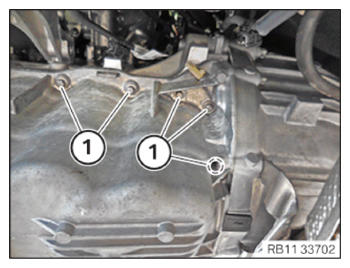

Unscrew the transmission bolts (1).

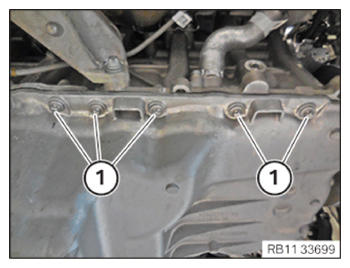

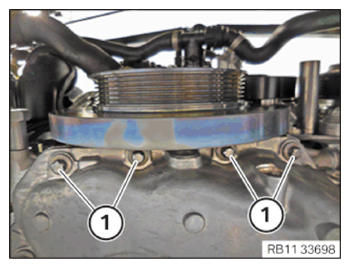

- Loosen screws (1).

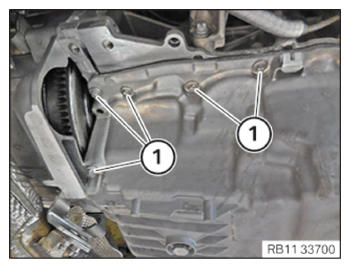

- Loosen screws (1).

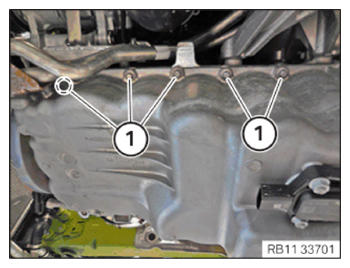

- Loosen screws (1).
- Loosen screws (1).

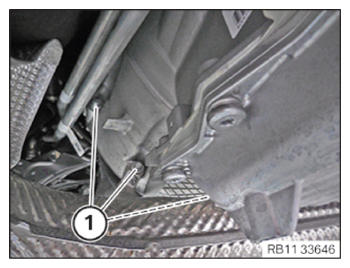

- Loosen screws (1).
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

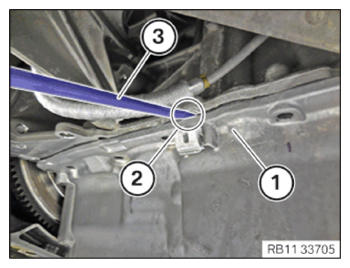

- Release the oil pan (1) in the marked areas (2) with a suitable tool (3).
NOTE:
TECHNICAL INFORMATION
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.
Increased force may be necessary during disassembly because the component is bonded with liquid sealing compound.

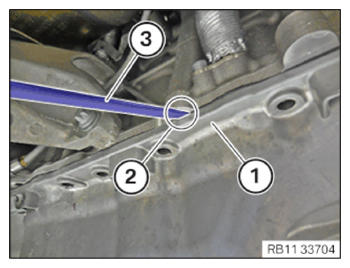

- Release the oil pan (1) in the marked
areas (2) with a suitable tool (3).

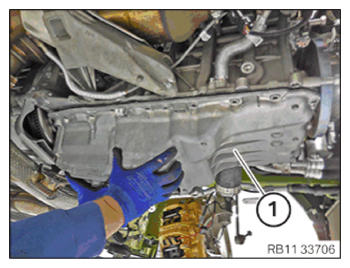

- Feed out the oil pan (1) to the bottom and remove it.
