Remove intermediate pipe

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

Version A:

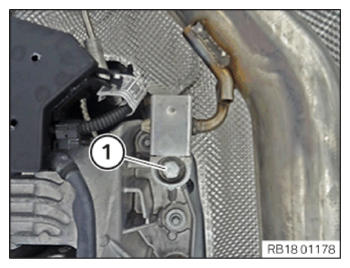

Loosen screw (1).

G15298525

Courtesy of BMW OF NORTH AMERICA, INC.

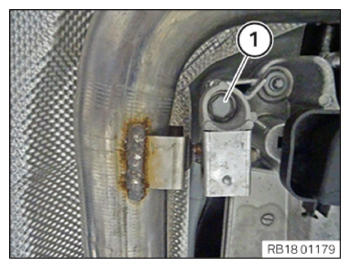

Loosen screw (1).

G15298526

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

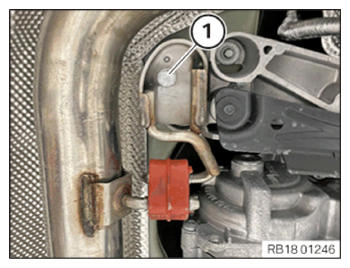

Loosen screw (1).

G15298527

Courtesy of BMW OF NORTH AMERICA, INC.

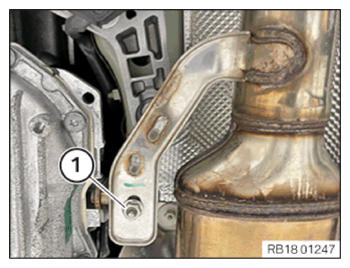

Release nut (1).

G15298528

Courtesy of BMW OF NORTH AMERICA, INC.

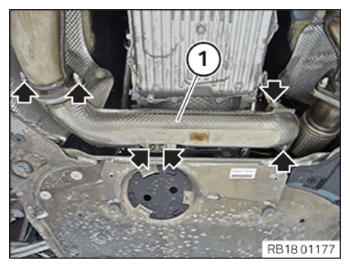

Unscrew the nuts (arrows).
Feed the intermediate pipe (1) out and remove.

G15298529

Courtesy of BMW OF NORTH AMERICA, INC.
