Installing the coolant line between the engine mount and crankcase
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .
- Do not use any metal-cutting tools.
NOTE:
TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.
The sealing surfaces must be free of oil, grease and cleaning agents.
- Check sealing ring (1) for damage, replace if necessary.
- Coat the sealing ring (1) with fresh coolant.

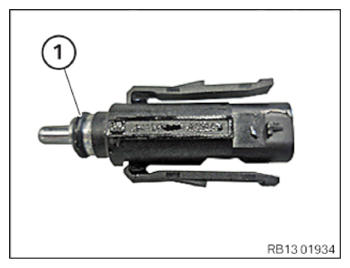

- Feed in and install the coolant temperature sensor (1).
The locks (arrows) must engage audibly.

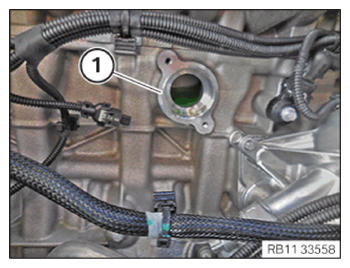

- Clean sealing surfaces (1) with special tool 0 495 102 (114 470)
.

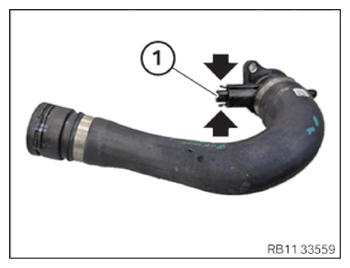

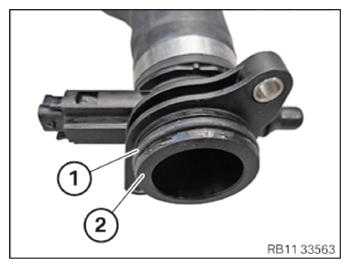

- Coat the sealing ring (1) on the coolant line (2) with fresh coolant.
- Insert the coolant line (3) and install it.
The lock (2) must engage audibly.
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS

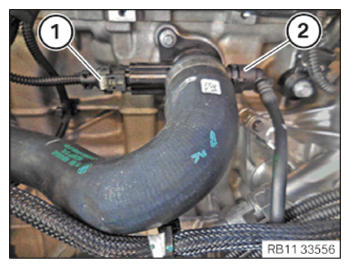

Coolant line to crankcase M6X25 Tightening torque 8 Nm - Connect connectors (1) and lock.
The connector (1) must engage audibly.

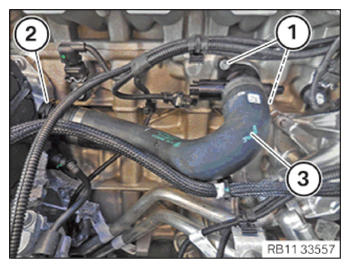

- Guide in the coolant line (2) and install it.
The coolant line (2) must engage audibly.
- Insert and install the holder (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS

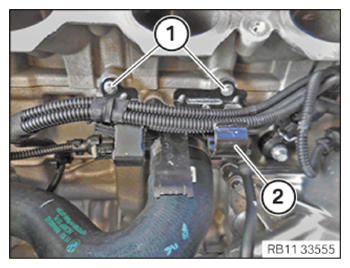

Tank vent valve holder to crankcase M6x16 Tightening torque 8 Nm - Feed in and position the wiring harness section (2) of the sensor system 1.

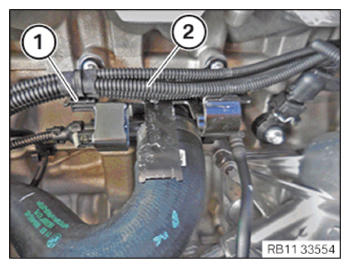

- Secure the clamp (1).CAUTION: Improper routing of the positive battery cable .
Risk of short circuits!- Route the positive battery cable without abrasions and do not trap.

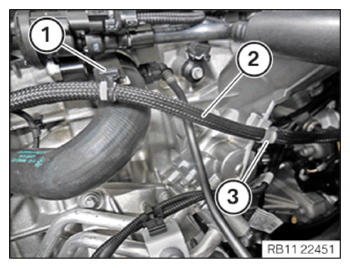

- Feed in and position the positive battery cable (2).
- Fasten the clamp (1) and (3).
