Installing the intake plenum
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Screws of the intake plenum
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.
NOTE:
TECHNICAL INFORMATION
Additional coolant can leakage. Make sure that no coolant enters the intake port of the cylinder head.
Additional coolant can leakage. Make sure that no coolant enters the intake port of the cylinder head.

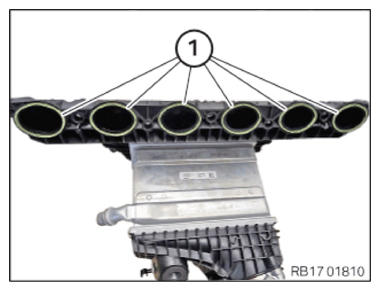

- Replace the seals (1)
.
Parts : Seals

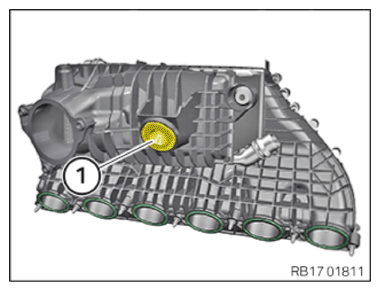

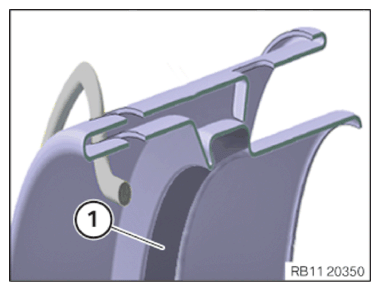

- Check the rubber mount (1)
for a correct fit on the charge air cooler.NOTE: Schematic diagram is for example purposes.
Some parts may differ in certain details. - Clean contact surface (1)
.

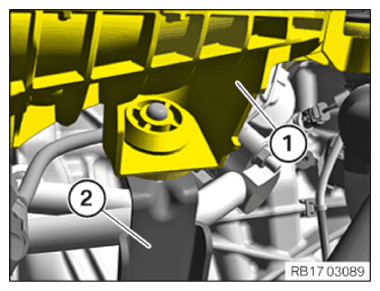

- Ensure that charge air cooler (1)
fits correctly on the bottom holder (2)
during installation.

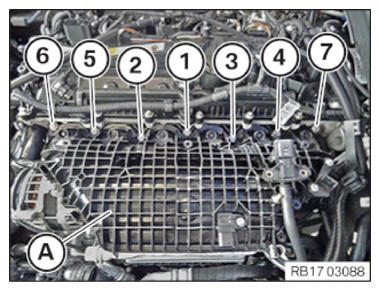

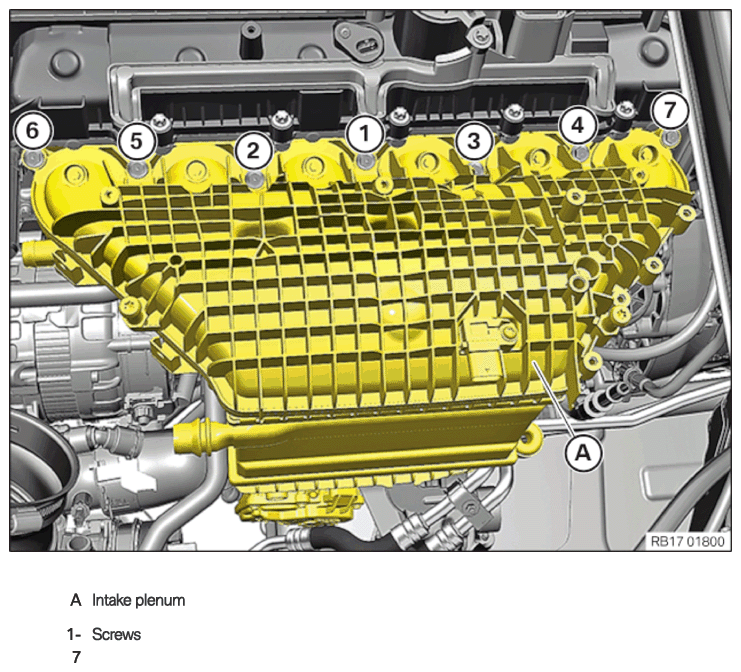

- Insert and position the charge air cooler (A) .
- Tighten the screws in the sequence (1)
to (7)
.TIGHTENING TORQUE SPECIFICATIONS

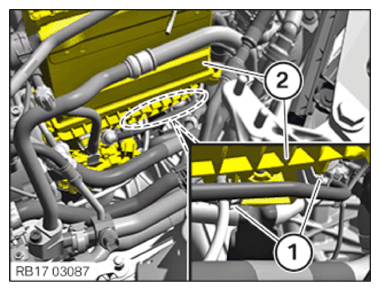

Intake plenum to cylinder head M6 tightening torque 10 Nm - Secure clamps (1)
to charge air cooler (2)
in the marked area.

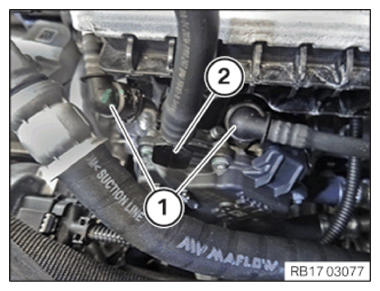

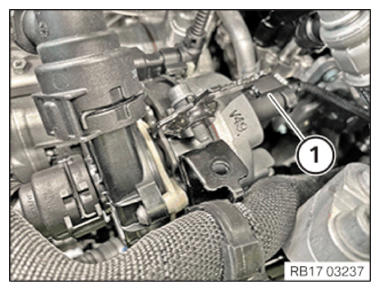

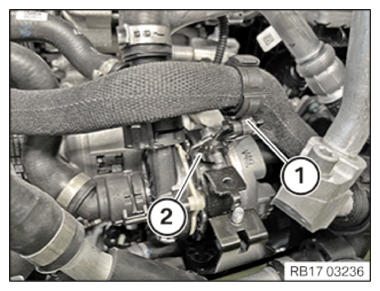

- Connect connector (1)
to throttle valve (2)
and lock it.
The connector (1) must engage audibly.

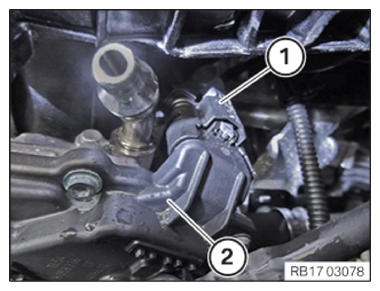

- Connect and lock the tank vent line (2)
.
The tank vent line (2) must engage audibly.
- Connect and lock the coolant lines (1)
.
The coolant lines (1) must engage audibly.

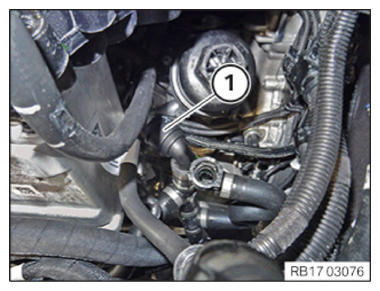

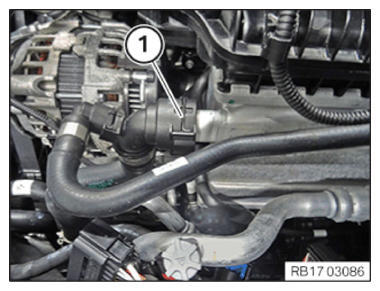

- Connect and lock coolant line (1)
.
The coolant line (1) must engage audibly.
- Connect and lock coolant line (1)
.
The coolant line (1) must engage audibly.

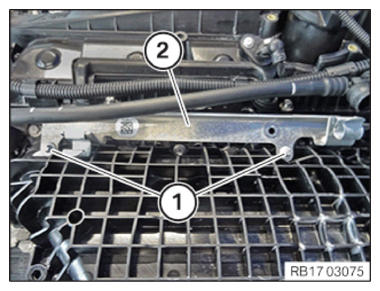

- Insert and install the holder (2) .
- Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Holder on the intake plenum 6x18 screw Tightening torque 5.5 Nm - Secure clamps (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

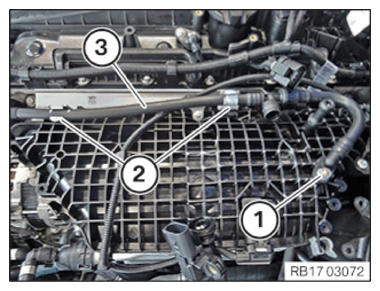

- Secure the clamp (1)
.
- Guide the tank vent line (3) into the holders (2) and connect it to the charge air cooler.
- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Tank vent line on the intake plenum M6 Tightening torque 4 Nm - Insert and install the wiring harness section (2)
.
The lock (1) must engage audibly.

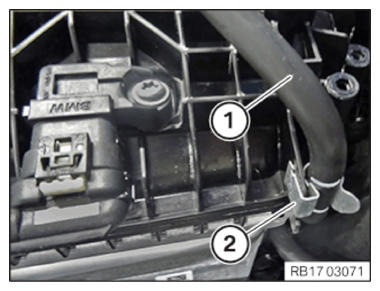

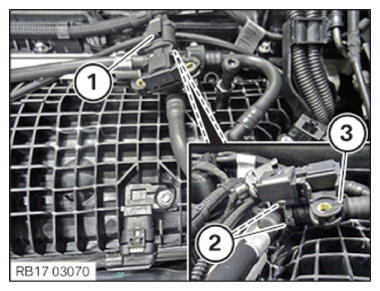

- Secure the tank ventilation line (1)
to the clamp (2)
.
- Connect the tank vent line together with the pressure sensor (3) .
- Ensure that all locks (2) engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

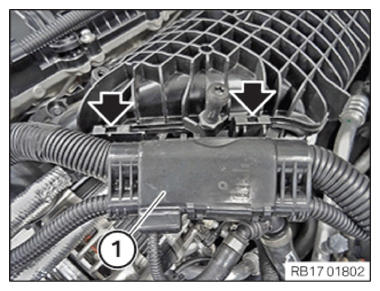

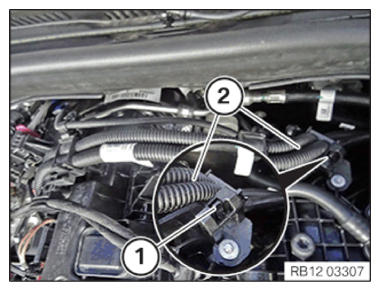

- Guide in the wiring harness section (1)
and install.
The locks (arrows) must engage audibly.

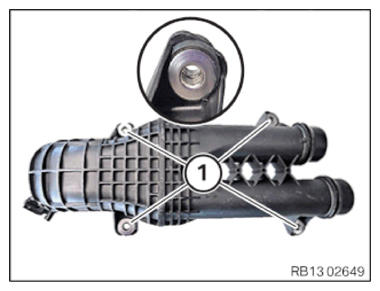

- Ensure that the guide sleeves (1)
are present and have been installed correctly.

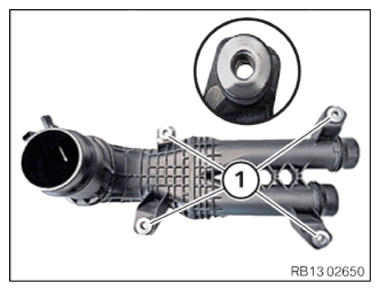

- Ensure that the guide sleeves (1)
are present and have been installed correctly.
- Check the seal (1) for damage and replace if necessary.
Replacing the damaged seal
NOTE:
TECHNICAL INFORMATION
Use of sharp or pointy tools for installation or removal is prohibited.
Use of sharp or pointy tools for installation or removal is prohibited.
- Remove damaged seal.

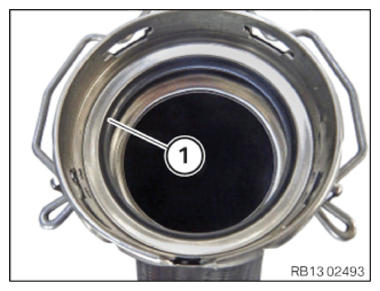

- Clean the gasket groove (1)
with a dry cloth.
The gasket groove (1) must be clean.
- Replace gasket.
Parts: Gasket
- Install the seal dry without lubricant or mounting agent.NOTE: TECHNICAL INFORMATION
Incorrect assembly is possible. Ensure correct installation position. - Thread in seal and install.

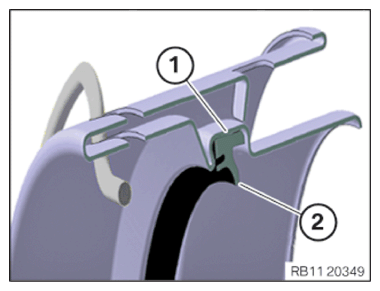

- Make sure that the seal is installed correctly in the gasket groove (1) .
- Make sure that the sealing lip (2) is directed to the inside as shown.

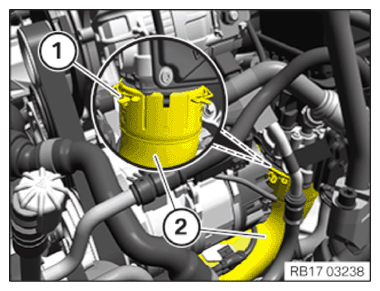

- Lock clamp (1)
.
- Connect and lock charge air hose (2)
.
The clamp (1) must engage audibly.
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Attach holder (1)
to the electrical auxiliary coolant pump (2)
.
- Feed in and install the electrical auxiliary coolant pump (2) .

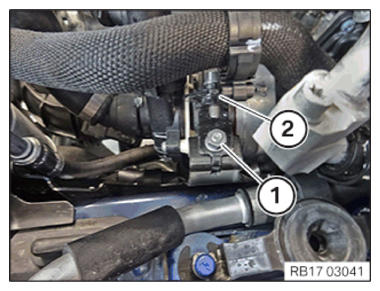

- Tighten nut (1)
.TIGHTENING TORQUE SPECIFICATIONS
Electric coolant pump to holder M6 tightening torque 8 Nm - Tighten the screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

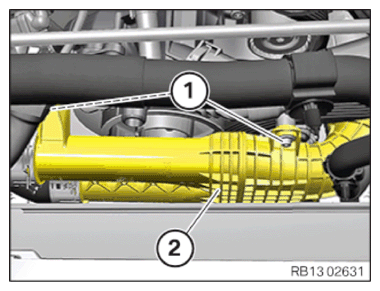

Charge air duct on spacers M6x25 screw tightening torque 10 Nm - Insert the charge air crossing (2) and position it.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Charge air duct on spacers | ||
|---|---|---|
| M6x25 screw | tightening torque | 10 Nm |
Follow-up work
- Refer to SECURING THE ENGINE OIL COOLER .
- Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE CONTROL UNIT HOLDER .
- Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
