Install bearing bracket

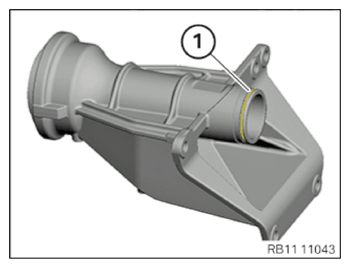

• Replace sealing ring (1).

  Parts:  Sealing ring

• Lightly oil the sealing ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

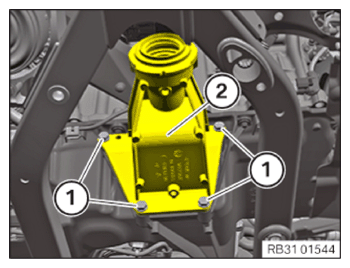

• Feed in and install the bearing bracket (2).
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Bearing bracket to engine oil pan  .
  M8	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to REPLACING THE RADIAL SHAFT SEALING OF THE BEARING BRACKET .
• Refer to INSTALLING THE OUTPUT SHAFT .
• Refer to SECURING THE WISHBONE AT THE SWIVEL BEARING .
• Refer to TOPPING UP/CHECKING FRONT AXLE DIFFERENTIAL OIL .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT SPOILER .
• Refer to FASTENING FRONT BRAKE CALIPER .
• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
