Install the tension strut

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Deflection of the ball joint of the tension strut by more than 25° .
Damage to the bellows and premature wear in the ball joint .

The tension strut may be angled at a maximum of 25° when installing and removing it!

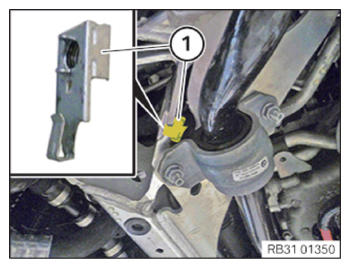

Replace the cage nut (1).
Parts: Cage nut

Courtesy of BMW OF NORTH AMERICA, INC.

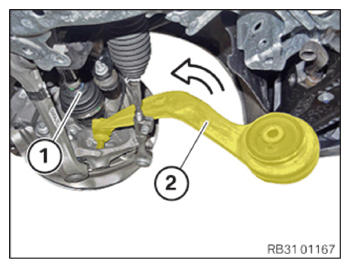

Push output shaft (1) slightly upwards.
Feed in the tension strut (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

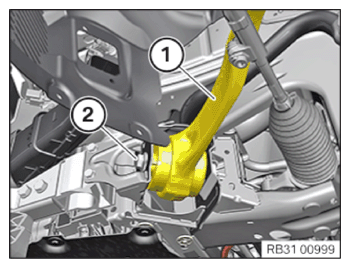

Position the tension strut (1) on the front subframe.
Replace the screw (2).
Parts: Screw
Feed in screw (2) and tighten hand-tight.
The screw connection is tightened later in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

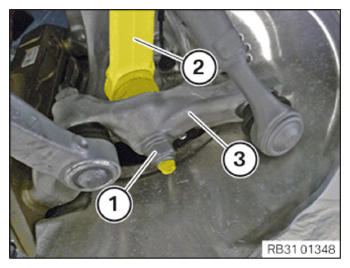

Position the tension strut (2) on swivel bearing (3).
Replace nut (1).
Parts: Nut

Tighten nut (1). If necessary, counter support at the Torx socket.

TIGHTENING TORQUE SPECIFICATIONS

Tension strut to swivel bearing
M14 Replace nut.	Tightening torque	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
Refer to TIGHTENING THE SCREW CONNECTION OF THE TENSION STRUT ON THE FRONT SUBFRAME .
Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
