Tightening the screw connection of the tension strut on the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

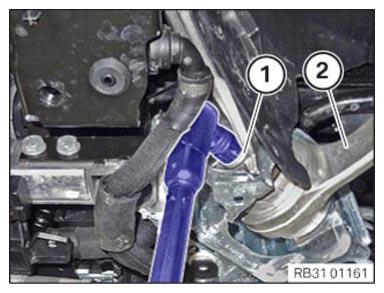

- Loosen screw (1) for the tension strut (2) by one turn.
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Tension strut to front axle support | ||
| M12 Replace bolt and cage nut. Tighten in normal position. |
Tightening torque | 68 Nm |
| Angle of rotation | 180° | |
