Measuring the ride height of the front axle and adjusting the normal position

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Set vehicle on its wheels (for example, workshop pit or vehicle lift for Kinematics Diagnosis System).

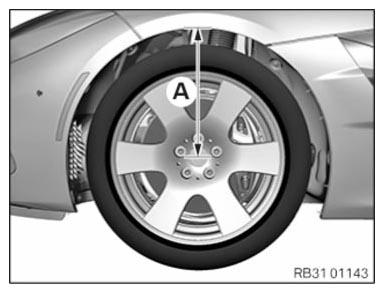

Measure the ride height (A) .
Load or unload the vehicle until the ride height (A) is within the tolerance.

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA SPECIFICATION

G80/G82/G83/G87 Rear-wheel drive/all-wheel drive, standard suspension
Measured from center of wheel hub to lower edge of wheel arch	Dimension A	381 ⁺¹⁰_-10 mm
