Installing the wishbone
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Deflection of the ball joint of the wishbone by more than 25° .
Damage to the bellows and premature wear in the ball joint .
Deflection of the ball joint of the wishbone by more than 25° .
Damage to the bellows and premature wear in the ball joint .
- The wishbone may be inclined by a maximum of 25° during installation or removal!
- Feed in and install the wishbone.
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .

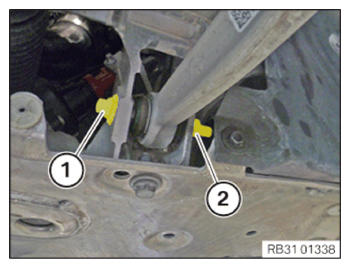

- Replace the screw (1) and the nut (2).
Parts: Screw, nut
- Insert the screw (1) and screw on the nut (2).
- Tighten screw (1) by hand. In doing so, counter support at the nut (2).
The screw connection is tightened with the torque wrench later in the NORMAL POSITION .

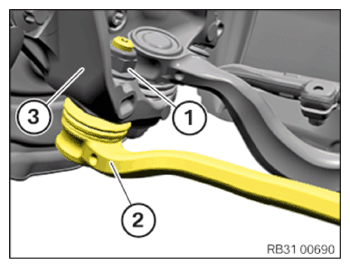

- Position the wishbone (2) on the swivel bearing (3).
- Replace nut (1).
Parts: Nut
- Tighten nut (1). If necessary, counter support at the Torx socket.
TIGHTENING TORQUE SPECIFICATIONS
| Wishbone to swivel bearing | ||
| M14 Replace nut. | Tightening torque | 175 Nm |
Follow-up work
- Refer to ATTACHING THE ATTACHMENT ROD OF THE RIDE HEIGHT SENSOR TO THE WISHBONE .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE WISHBONE TO THE FRONT SUBFRAME .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
