Tightening the screw connection of the wishbone to the front subframe

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

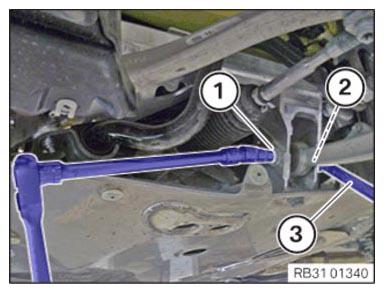

Loosen screw (1) by one turn. Provide counter support to nut (2) using standard tool (3) in the process.

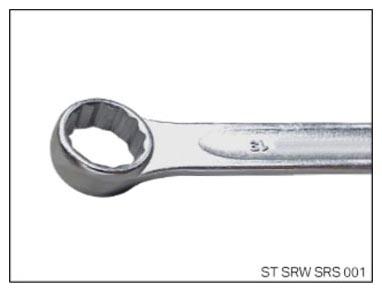

Standard tool: Ring wrench for hexagon head

Ring wrench for hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Ring wrench for hexagon
Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Wishbone to front axle support
M12 Replace screw and nut. Tighten in normal position! Tightening via screw.	Tightening torque	68 Nm
	Angle of rotation	180°
