Attaching the attachment rod of the ride height sensor to the wishbone

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only perform the operation on the left side.

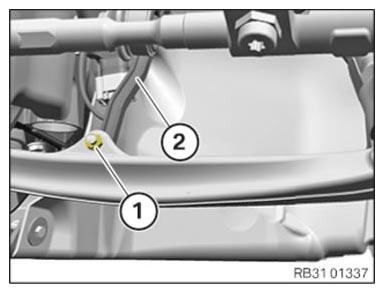

Position the attachment rod (2) on the wishbone.
Tighten nut (1) .

TIGHTENING TORQUE SPECIFICATIONS

Attachment rod to wishbone/camber control arm
M6 Replace nut.	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
