Installing the left engine support bracket
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

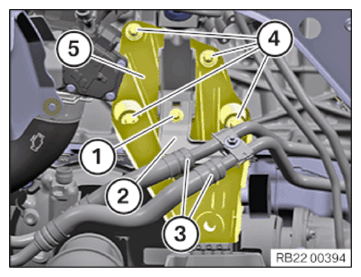

- Install the engine mounting bracket (5) .
- Tighten the screws (4) .
TIGHTENING TORQUE SPECIFICATIONS
| Engine support bracket on the engine | ||
| M10 | Tightening torque | 38 Nm |
- Install the holder (2) with the hydraulic lines (3) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Standard screw connection M6 | ||
| M6 | Tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE ENGINE OIL LINES .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to SECURING THE ENGINE OIL COOLER .
- Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE CONTROL UNIT HOLDER .
- Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to INSTALLING THE OIL FILLER CAP .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CHECKING ENGINE OIL LEVEL .
- Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
- Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING THE FILLER CHANNEL OF THE WASHER SYSTEM .
- Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
- Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
- Refer to INSTALLING THE COVER IN THE TOP RIGHT REAR PART OF THE ENGINE COMPARTMENT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT THE TOP REAR .
- Refer to INSTALLING THE SIDE HOOD SEAL .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
