Replace Hood
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE EMBLEM .
- Refer to REMOVING THE NOZZLE CHAIN .
- Refer to REMOVE HOOD .
Precondition
New part is painted.

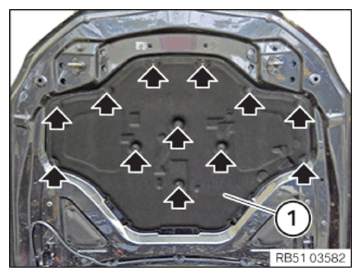

- Undo all clips using special tool 2 411 349 .
- Remove damping layer (1) and install on the new hood.
- Fit all clips.

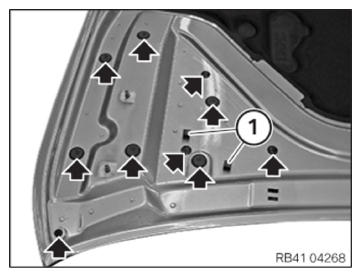

- Remove all seal plugs and install on the new hood.

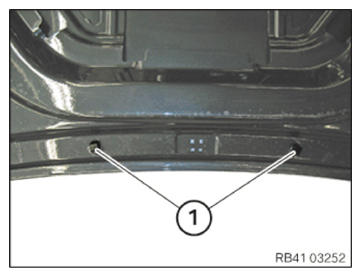

- Remove clip (1) and install on the new hood.
- Replace faulty clips (1).

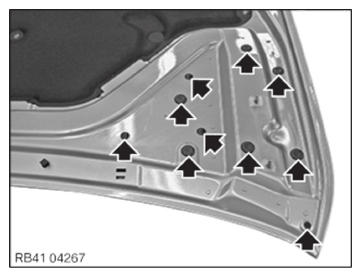

- Remove all seal plugs and install on the new hood.
- Remove clip (1) and install on the new hood.
- Replace faulty clips (1).

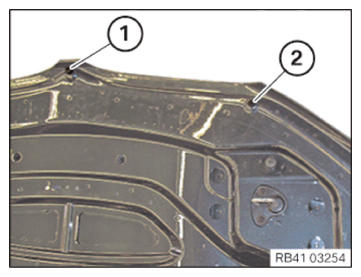

- Remove spacer (1) and install on the new hood.NOTE: Perform the steps on the right and left side.
- Remove spacer (2) and install on the new hood.

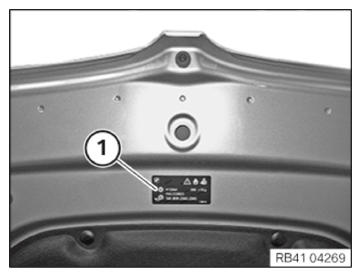

- Paste sign (1) on the new hood.
Paste auxiliary heater sign

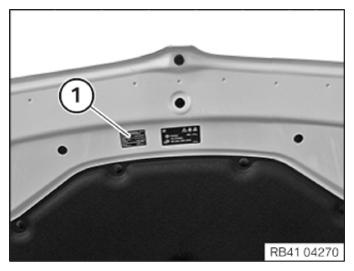

- Paste sign (1) on the new hood.
NOTE:
Perform the steps on the right and left side.

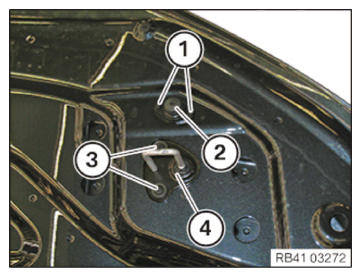

- Loosen the expanding rivet (1).
- Remove stop pad (2) and install on the new hood.
- Loosen screws (3).
- Remove striker (4) and install on the new hood.
- Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONS
| Striker to hood | ||
| screw | Tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALL HOOD .
- Refer to INSTALLING THE NOZZLE CHAIN .
- Refer to ADJUSTING HOOD .
- Refer to INSTALLING THE BADGE .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
