Installing the badge

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

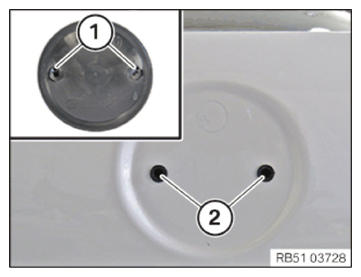

Check guide pins (1) for damage, replace if necessary.
The guide pins (1) must not be damaged or missing.
Replace the grommets (2).
Parts: Grommets
Install the grommets (2) in the hood.

Courtesy of BMW OF NORTH AMERICA, INC.

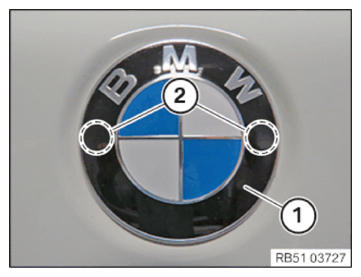

Press the badge (1) onto the guide pins (2).

Courtesy of BMW OF NORTH AMERICA, INC.
