Removing the nozzle chain
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Removing the cover of the rear right engine compartment.
- Loosen the lock (1)
- Remove the cover (2).
Covering the vehicle battery
WARNING: Unprotected battery terminals. Risk of short circuits! Risk of fire!- Cover the vehicle battery
NOTE: The following step(s) must be performed if the listed component(s) is/are installed.- Cover the vehicle battery with the special tool 2 452 007 as shown.
- Unclip the jet chain from all holders on the hood.

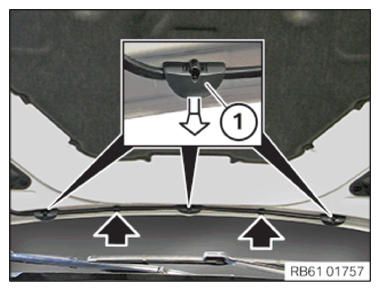

- Unclip the spray nozzles (1) in the arrow direction.
- Unclip the jet chain (1) from all holders on the hood.
