Adjusting Hood
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
Follow-up work
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY DIMENSIONS .
NOTE:
Perform the steps on the right and left side.
- Remove protective cap (1).
- Loosen nuts (2) and (3) until the hood can be pushed.
- Slide the hood in longitudinal direction and to the side until the hood has the specified gap dimension.
Check
- Check gap dimensions.
Result
- » Gap dimensions do not correspond to the specifications.
Measure
- Adjusting hood.
NOTE: Perform the steps on the right and left side. - Install the nuts (2) and (3) and tighten.TIGHTENING TORQUE SPECIFICATIONS
Hood to the hinge Nut M8 Tightening torque 19 Nm - Install the protective cap (1).
Adjusting engine compartment lid catch
NOTE:
Perform the steps on the right and left side.

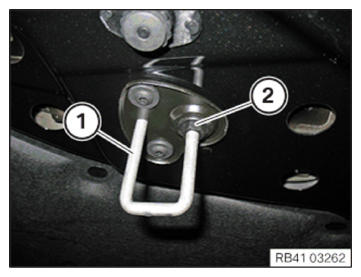

- Adjust striker (1) by turning nut (2).
Check

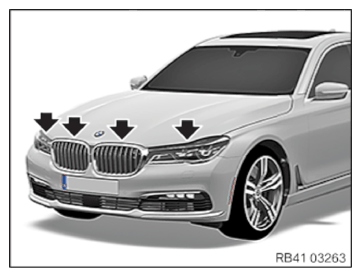

- Check gap dimensions between the hood and the headlights.
Check gap dimensions between the hood and the front ornamental grill.
Result
» Gap dimensions do not correspond to the specifications.
Measure
- Adjust hood latch.
Adjust stop pads

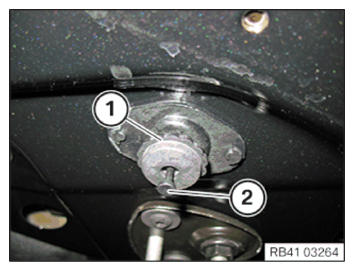

- Screw in stop pads (1) fully until the pin (2) can be pulled out.
Pull the pin (2) out approx. 5 mm.
- Slowly close the hood.
- Pin (2) will be pressed into stop pad (1) while doing so.
- Raise the hood.
- Unscrew stop pad (1) so far until setting plug (1) is flush with the upper edge of pin (2).
