Remove coil spring cassette
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: 72 00 SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
TECHNICAL INFORMATION
Wheel alignment is not necessary after removal, installation or replacement.
Wheel alignment is not necessary after removal, installation or replacement.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING AIRBAG UNIT .
- Refer to REMOVING STEERING WHEEL .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING LOWERING PART OF STEERING COLUMN SHROUD .
- Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .

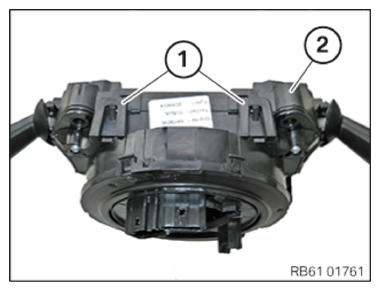

- Loosen the detents (1) on the steering column switch cluster (SZL) (2).

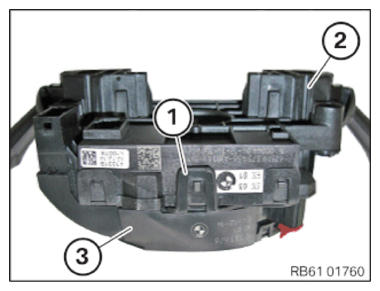

- Loosen the central detent (1) on the steering column switch cluster (SZL) (2).
- Remove the coil spring cassette (3) from the steering column switch cluster (SZL) (2).
