Installing the steering gear
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The screws for the steering gear are self-tapping. Therefore, no thread must be cut into the steering gear (or transmission).
The screws for the steering gear are self-tapping. Therefore, no thread must be cut into the steering gear (or transmission).

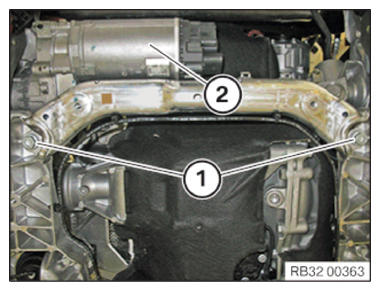

- Position the steering gear (2).
- Replace screws (1).
Parts: Screws
- Insert the screws (1) by hand force but do not tighten.
- Turn the anti-roll bar (3) upwards and position.
- Replace screws (1) and (2).
Parts: Screws
- Insert the screws (1) and (2) by hand force but do not tighten.
NOTE:
TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Non-compliance with the regulations can lead to damage.
When assembling, it is essential to observe screwing sequences and tightening torques.
Non-compliance with the regulations can lead to damage.

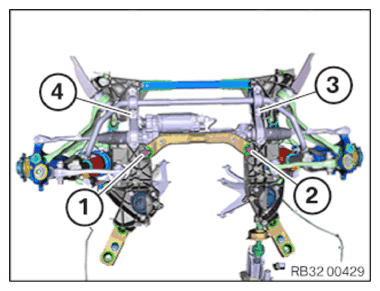

- Tighten the steering gear screws in the screw sequence (1-4).
TIGHTENING TORQUE SPECIFICATIONS
| Steering gear to front axle support (all wheel drive vehicles) | ||
| M12 Replace screws. | Joining torque Angle of rotation |
60 Nm 90° |

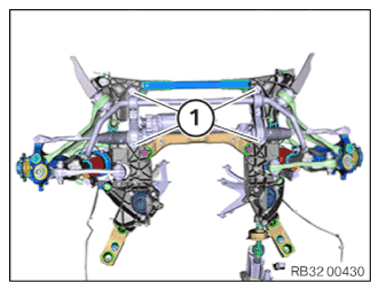

- Tighten the screws (1) of the anti-roll bar on the front subframe.
TIGHTENING TORQUE SPECIFICATIONS
| Holder, stabilizer mounting to front axle support | ||
| M12 Replace screw. | Joining torque Angle of rotation |
100 Nm 45° |
Follow-up work
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE UNIVERSAL JOINT .
- Refer to INSTALLING BOTH TIE ROD ENDS .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
- Refer to REPLACEMENT: COMMISSIONING (INITIALIZATION) OF THE ELECTROMECHANICAL STEERING .
- Refer to CHECKING THE AIRBAG FOR FUNCTION .
