Installing both tie rod ends
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Installing tie rod end

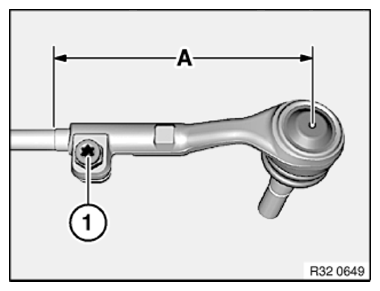

- Screw tie rod end onto the tie rod up to dimension (A), which was determined before removal.NOTE: If necessary, hold the tie rod with an open-end wrench for counter support.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION

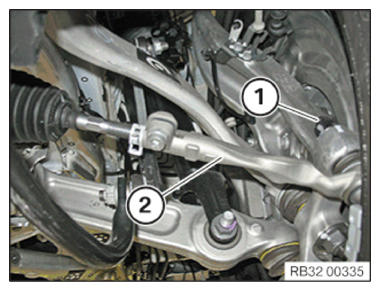

Tie rod end to tie rod M10 tightening torque 32 Nm - Position the tie rod end (2) on the swivel bearing.
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1)
.NOTE: If necessary, counter-hold at the Torx socket.
TIGHTENING TORQUES SPECIFICATION
| Tie rod end to swivel bearing | ||
| M14 Replace nut. |
Tightening torque | 165 Nm |
