64 11... Removing And Installing/Replacing Air Duct For Right FOOTWELL

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox. Refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX .

Remove insert in front of glovebox and trim below glovebox. Refer to 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Remove heating controls. Refer to 64 11 748 REMOVING AND INSTALLING HEATER CONTROLS (A/C CONTROL) or 64 11 749 REMOVING AND INSTALLING HEATER CONTROLS (AUTOMATIC AIR CONDITIONING) .

Version with on-board monitor only:

Remove complete on-board monitor. Refer to 65 52 010 REMOVING AND INSTALLING ON-BOARD MONITOR or 65 52 013 REMOVING AND INSTALLING COMPLETE ON-BOARD MONITOR (WIDESCREEN) .

NOTE: Air duct for right footwell (1) is clipped onto housing of heater - A/C unit.

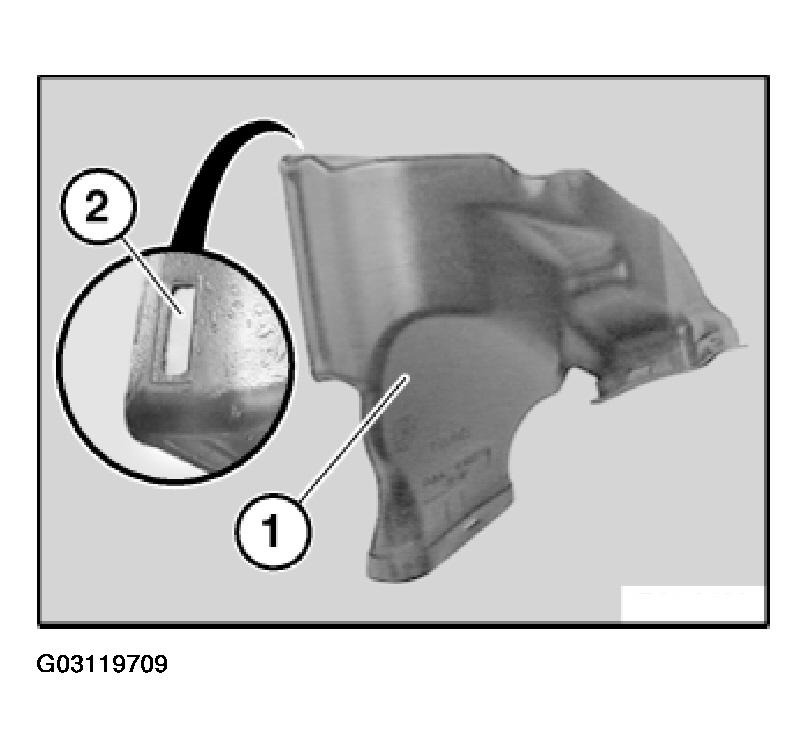

Fig 1: Identifying Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock air duct for right footwell (1) through opening of heater - A/C controls or on-board monitor.

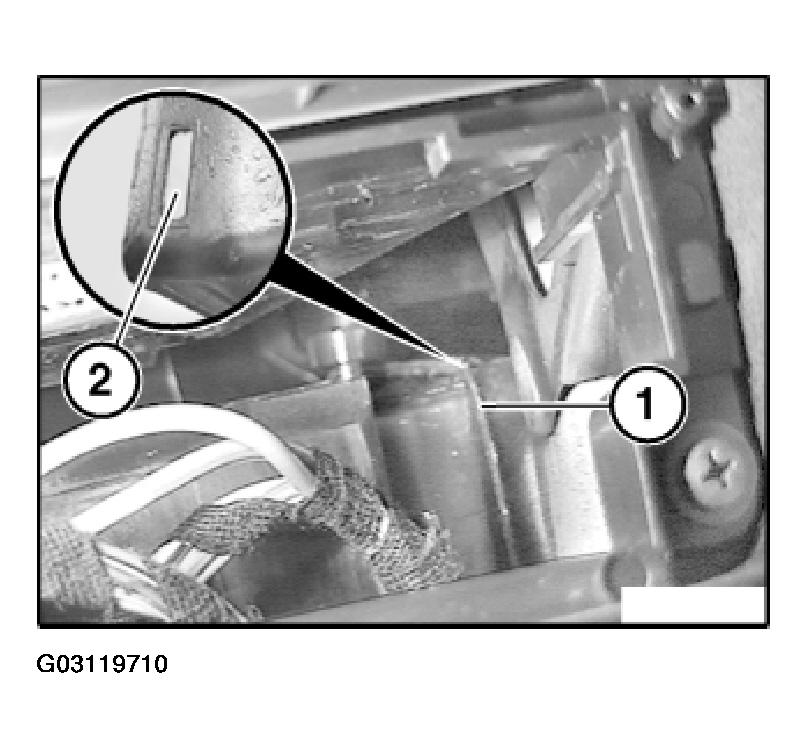

Fig 2: Unlocking Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Opening (2) for lock must not be damaged.

Lift unlocked air duct for right footwell (1) upwards out of rear compartment air duct and feed out to front right.

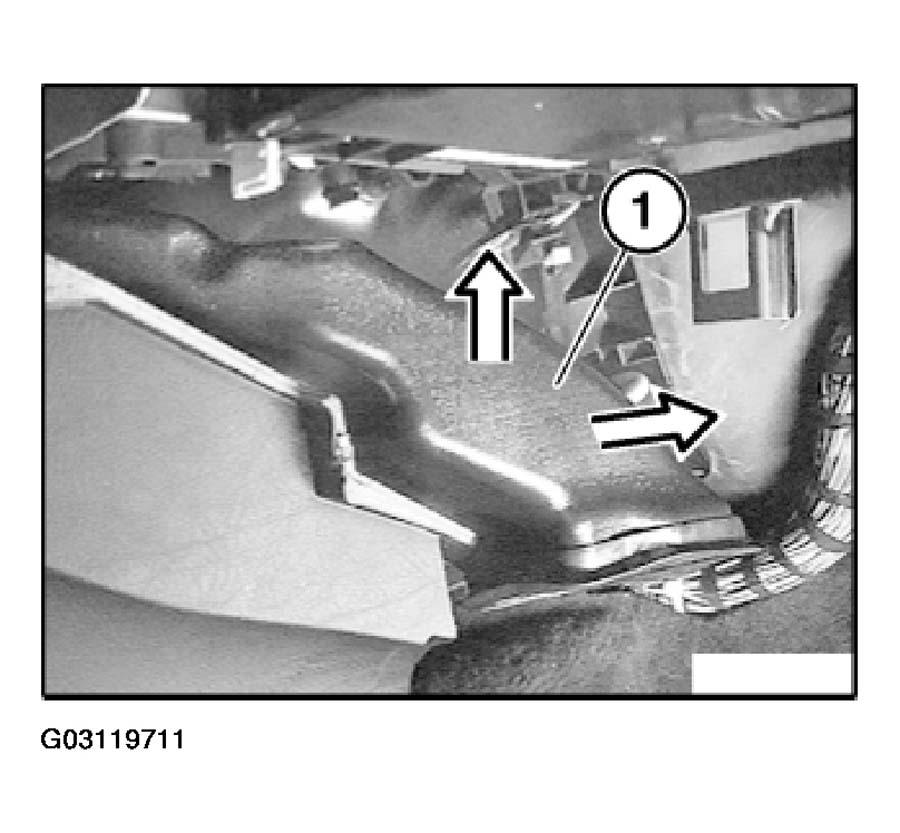

Fig 3: Removing Air Duct For Right Footwell

Courtesy of BMW OF NORTH AMERICA, INC.
