64 11 748 Removing And Installing Heater Controls (A/C Control)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 010

Necessary preliminary tasks:

Remove ignition key from ignition switch.
Pull fuse 63 from distribution box in glovebox.

Pull out heater controls (1) with special tool 64 1 010.

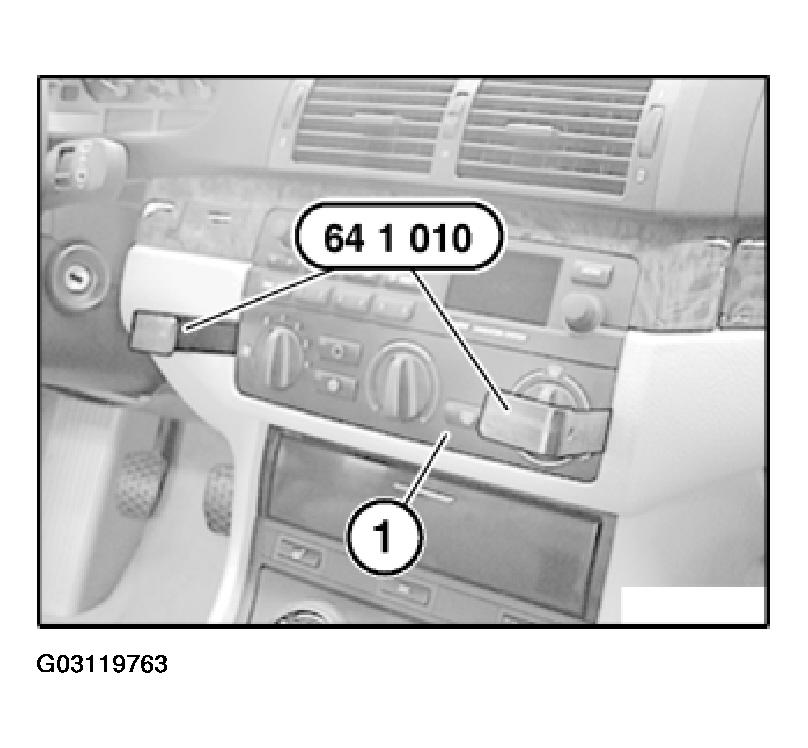

Fig 1: Pulling Out Heater Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Installation:

Note color coding of plugs.
