65 52 013 Removing And Installing Complete On-Board Monitor (Widescreen)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

65 1 110

Remove center fresh air grill (with decorative strip). Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (HEATING) or 64 22 162 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (AIR CONDITIONING) .

NOTE: Use of special tool 65 1 110, shown on left side with complete on-board monitor removed (same procedure applies for use on right side):
Feed in special tool 65 1 110 for extended trim for on-board monitor (3) as illustrated until pawl (1) of catch (2) snaps into place.

After removing complete on-board monitor, press catch (2) and feed out special tool 65 1 110 again.

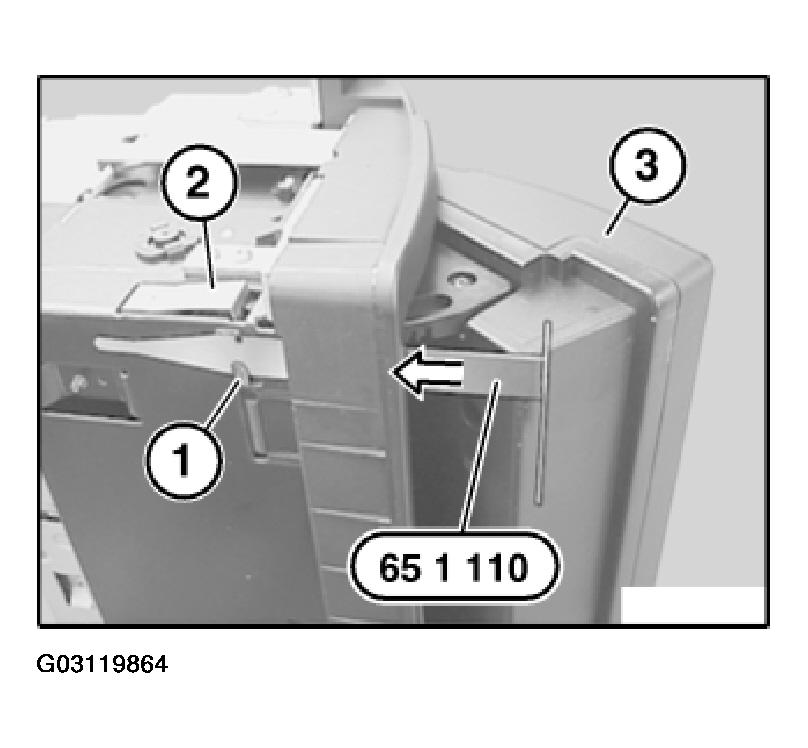

Fig 1: Feeding In Special Tool 65 1 110

Courtesy of BMW OF NORTH AMERICA, INC.

Extend trim for on-board monitor (1) as illustrated.

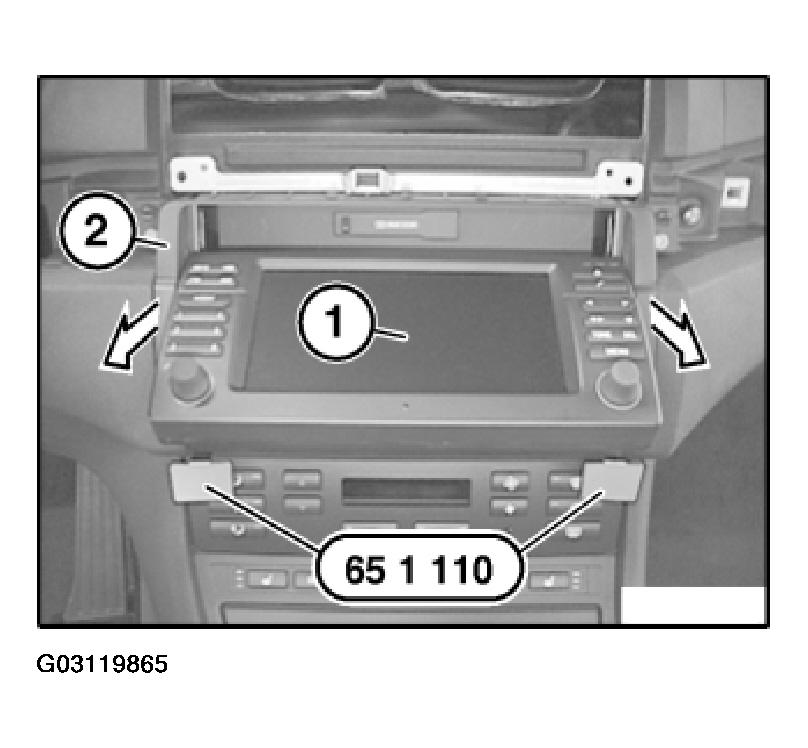

Fig 2: Unlocking Complete On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Trim for on-board monitor (1) returns after approx. 15 seconds to its initial position.

Using special tool 65 1 110, unlock complete on-board monitor (2) at bottom left and right and pull out in direction of arrow.

NOTE: Secure complete on-board monitor (2) against falling out.

Unlock side plug connections and disconnect.

Remove complete on-board monitor (2).

Installation:

When sliding in complete on-board monitor (1), make sure catches (2) on both sides are correctly seated.

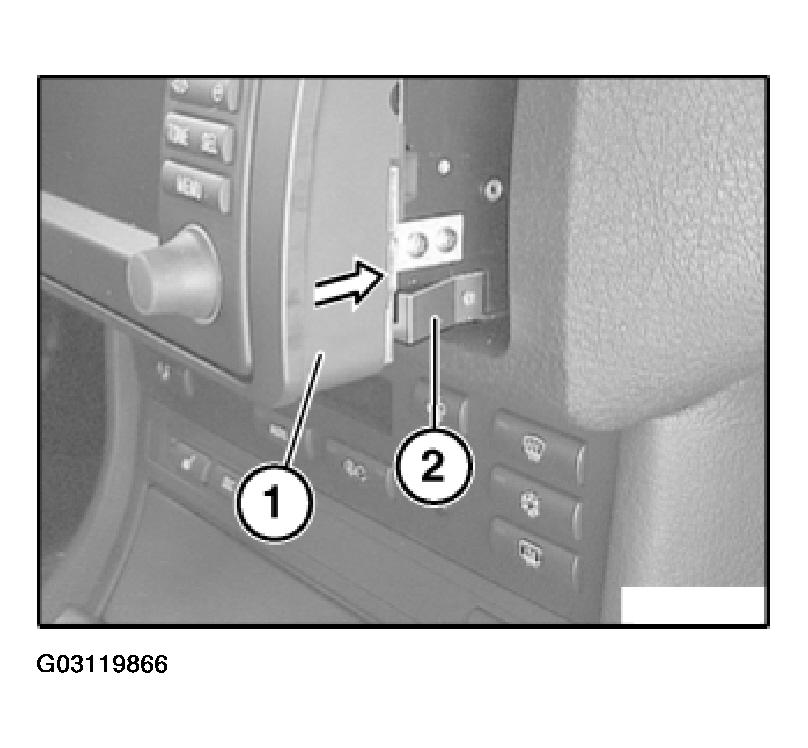

Fig 3: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.
