65 52 010 Removing and installing on-board monitor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove center fresh air grill (with decorative strip). Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (HEATING) or 64 22 162 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (AIR CONDITIONING) .

Pull off molded menu button (1) in direction of arrow.

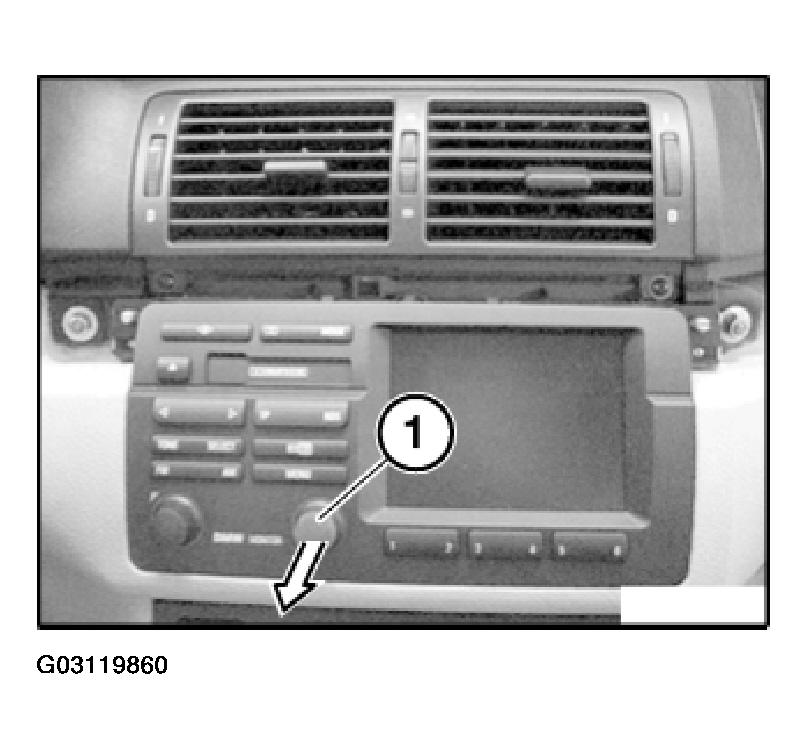

Fig 1: Pulling Off Molded Menu Button

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screwdriver (1) in opening (3) of lock (4).

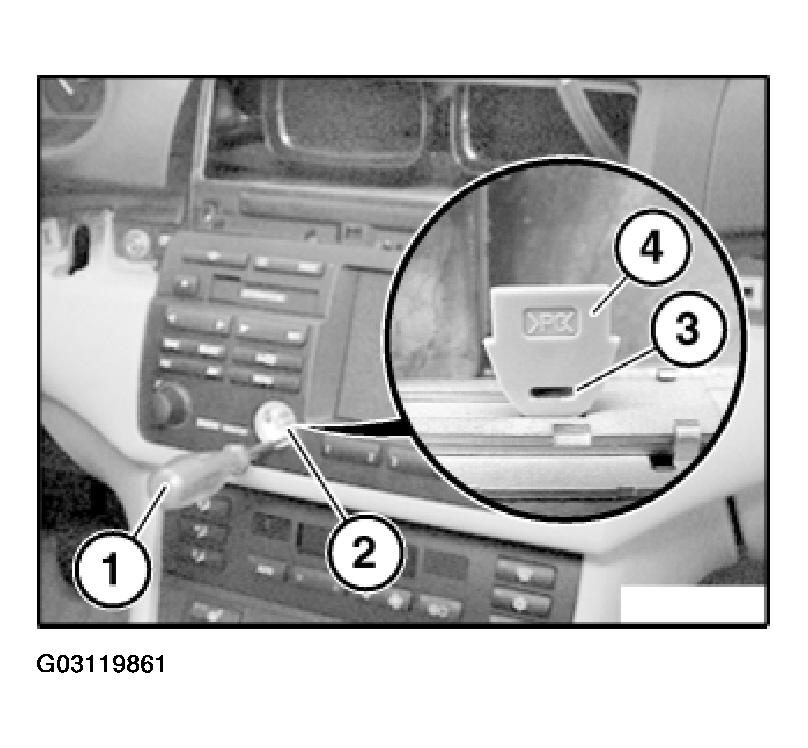

Fig 2: Inserting Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Using screwdriver (1), turn lock (2) as far as it will go in direction of arrow and pull out complete on-board monitor (3) on left towards rear.

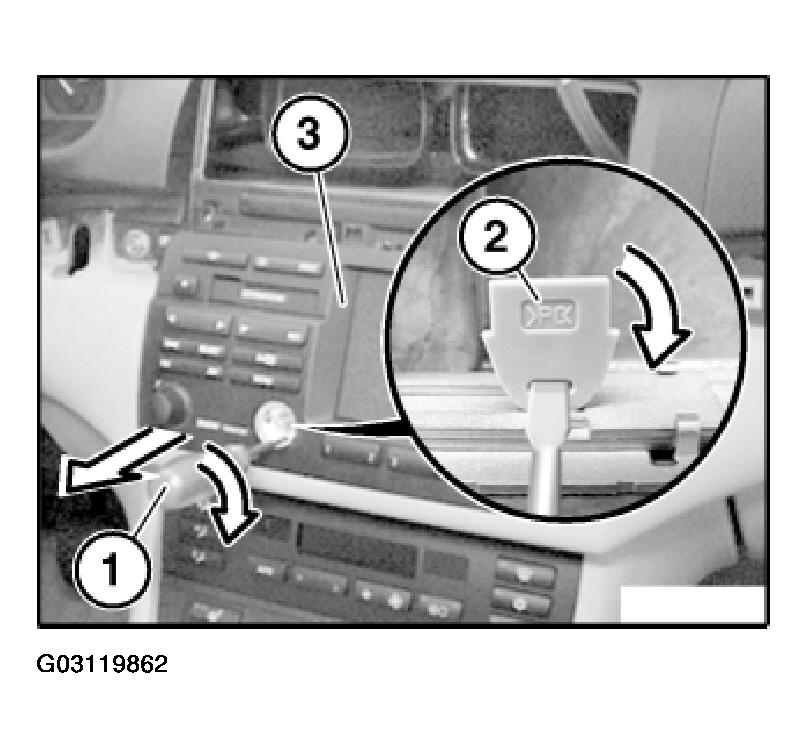

Fig 3: Unlocking On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Then, using screwdriver (1), turn lock (2) as far as it will go to left and pull out complete on-board monitor (3) on right towards rear.

Disconnect plug connections (1) and (2) and remove complete on-board monitor.

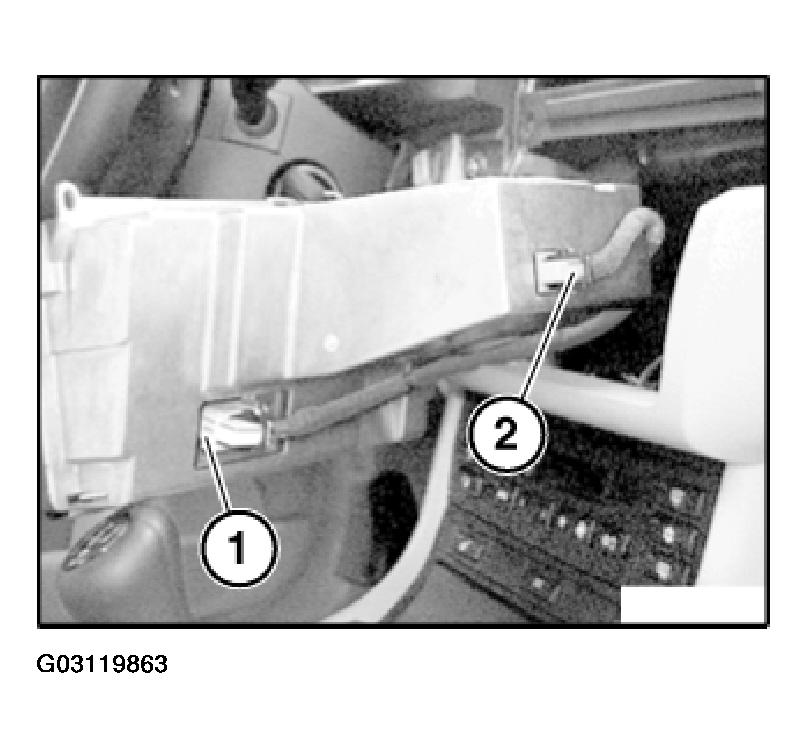

Fig 4: Removing On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.
