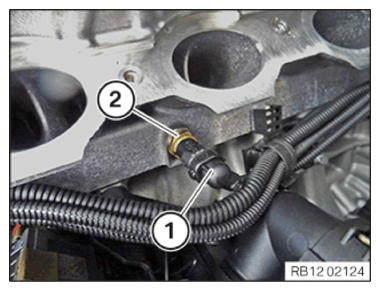

Install coolant temperature sensor

• Insert and install the coolant temperature sensor (2)  .
• Tighten the coolant temperature sensor (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Coolant temperature sensor at cylinder head
  Sensor	Tightening torque	18 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  NOTE: TECHNICAL INFORMATION
  Follow notes for repair work on the cooling system.
  For additional information see: NOTES FOR WORKING ON THE COOLING SYSTEM .
• Loosen sealing cap (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the coolant level to the maximum mark (1)  in the coolant expansion tank for the high-temperature coolant circuit (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close sealing cap (1)  .
• Close the sealing cap (1)  until the arrows  are flush.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INTAKE PLENUM .
• Refer to INSTALLING THE TANK VENT VALVE .
• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
