Install all valves

NOTE: RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

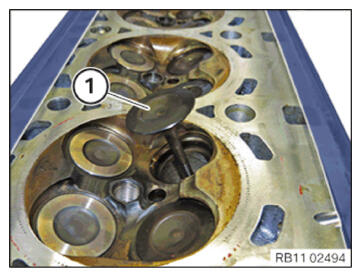

Slide the valve (1) carefully in the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.
B38:

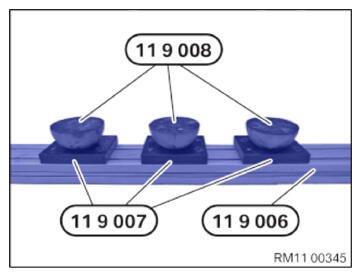

Prepare the special tools 0 494 371 (11 9 006) , 0 494 372 (11 9 007) and 0 494 373 (11 9 008) as shown .

Courtesy of BMW OF NORTH AMERICA, INC.
B46/B48:

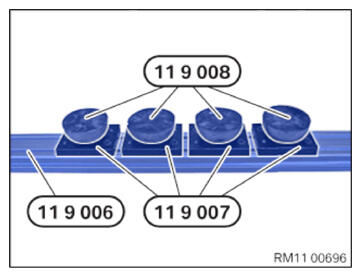

Prepare the special tools 0 494 371 (11 9 006) , 0 494 372 (11 9 007) and 0 494 373 (11 9 008) as shown .

Courtesy of BMW OF NORTH AMERICA, INC.
B58:

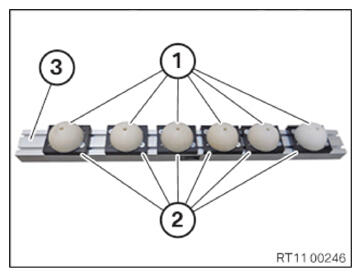

Prepare plastic shaped parts (1) with the shaped parts (2) and aluminum frame insert (3).

Courtesy of BMW OF NORTH AMERICA, INC.
B38:

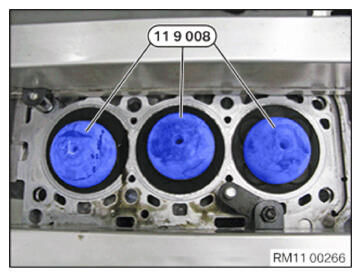

Prepare the special tools 0 494 373 (11 9 008) for the corresponding alignment in the next step.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B46/B48:
0 494 373 (11 9 008) for the corresponding alignment in the next step is to be prepared.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The figure shows the engine B58.

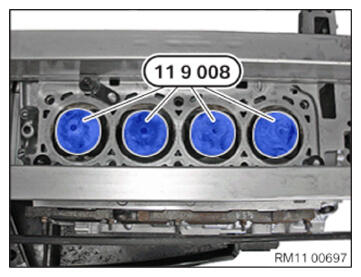

Position the special tools 0 494 371 (11 9 006) , 0 494 372 (11 9 007) and 0 494 373 (11 9 008) on the cylinder head in the center in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

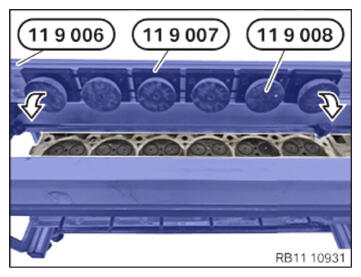

Turn round special tool 0 494 371 (11 9 006) and insert as shown.

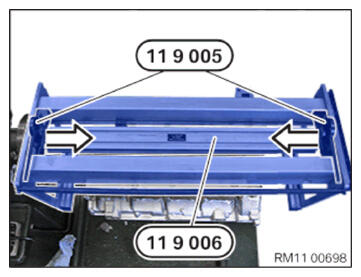

Lock the special tools 0 494 370 (11 9 005) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Shift the special tools 0 494 370 (11 9 005) in arrow direction via the edges of the special tools 0 494 371 (11 9 006) and lock them .

Courtesy of BMW OF NORTH AMERICA, INC.

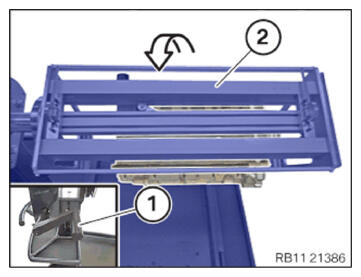

Turn the special tool 0 494 366 (11 9 001) (2) on the crank (1) by 180° in arrow direction .

Courtesy of BMW OF NORTH AMERICA, INC.
