Installing the exhaust turbocharger (cylinder head removed)

NOTE: RISK OF DAMAGE
Damage of the electric wastegate valve controller.
Excessive force when removing and installing a jammed exhaust turbocharger may damage the electric wastegate valve controller.

Do not pull on the electrical wastegate valve controller or on the coupling rod.
Apply force only at the turbine housing and exhaust manifold.
Do not pull on the compressor housing.

Check the stud bolt (1) for damage and replace If necessary.
Parts: Stud bolts

Check the screw-In depth (A) of the top stud bolt (1) and screw It In further.

TECHNICAL DATA SPECIFICATION

Screw-in depth of upper stud bolts on cylinder head
Dimension A	30 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Check the stud bolt (2) for correct fit.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
Courtesy of BMW OF NORTH AMERICA, INC.
Clean the sealing surfaces on the cylinder head (1) using special tool 0 495 102 (11 4 470) .
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
Courtesy of BMW OF NORTH AMERICA, INC.
Clean the sealing surfaces (1) on the exhaust turbocharger with the special tool 0 495 102 (11 4 470) .
Replace the seal (1).
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in and install the seal (1).
Ensure that seal (1) is installed correctly in the guide pins in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.

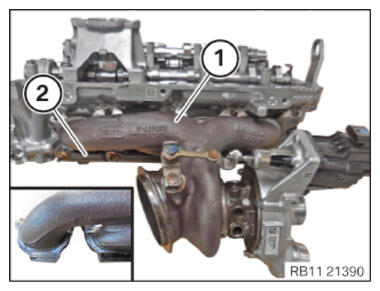

Guide in the exhaust turbocharger (1) down into the trim strip (2) and bring into contact with the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Note the installation position of the component. The component can be installed in various installation positions.
Mount the sliding bar (1).
The original BMW part number of the sliding rail (1) must be legible from the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

Fig 1: Exhaust Turbocharger Nuts Tightening Sequence
Courtesy of BMW OF NORTH AMERICA, INC.
Replace nuts (1) to (5).
Parts: Nuts

Tighten the nuts in order form (1) to (5).

TIGHTENING TORQUE SPECIFICATION

Exhaust turbocharger to cylinder head
M7 Observe tightening sequence!	Replace nuts. 1. Joining torque	10 Nm
	2. tightening torque	10 Nm
	3. Joining torque	16 Nm
	4. tightening torque	16 Nm
	5. Tightening torque	16 Nm
